American Power Conversion (APC)

American Power Conversion (APC) 750mm Netshelter SX Roof Fan Tray, 208-230 VAC

SKU: APCACF504 MFR: ACF504
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$530.25 $21 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

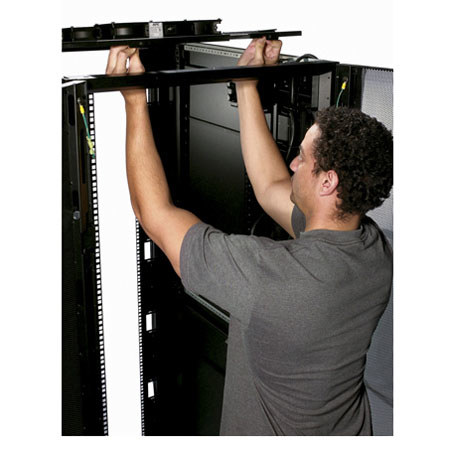

The APC 750mm Netshelter SX Roof Fan Tray is a low cost solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

What's Included With This Item

  • APC 750mm Netshelter SX Roof Fan Tray
  • Installation Guide
  • APC 2 Years Warranty

Key Features

  • Increases Airflow: Provides proper intake temperatures, increasing equipment life. Dual A-B Power Inputs - Draws power from the UPS for power protection with dual feeds for redundancy
  • Air Filtration: Removes dirt and other particulates from the intake air for cleaner supply air
  • Easy to install: Innovative design allows for fast, easy installation by almost anybody
  • Fan guards: A safety measure that provides protection from the fan opening by covering the inlet

Technical Specs

Compatibility NetShelter SX 750mm Enclosures
Number of Power Cords One
Nominal Input Voltage 208-230 VAC
Input Frequency 50/60 Hz
Input Connections British BS1363A
IEC-320 C14
Schuko CEE 7/7P
Air Flow 440.0 CFM (207.66 lps)
Maximum Noise Level 62 dB(A)
Approvals CSA C22.2 No. 60950, PSE, UL 60950
Dimensions (HxWxD) Maximum: 2.36x28.50x35.16" (5.99x72.39x89.30cm)
Weight 22.50lbs (10.20kg)
