American Power Conversion (APC)

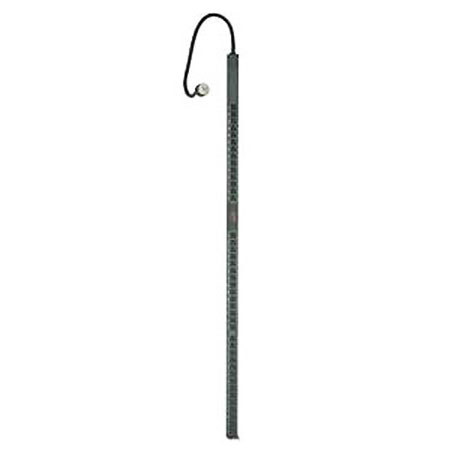

American Power Conversion (APC) Basic Rack 120V Zero U Power Distribution Units, NEMA L21-20 (3PH)

SKU: APCAP7562 MFR: AP7562
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$302.50 $12 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

APC Basic Rack 5.7kVA PDU which allow users to distribute power outlets to rack-mount equipment with Multi-branch power input and with low cost power distribution. APC offers Basic Rack PDU that mount vertically, without tools in the rear channel of a NetShelter VX.

What's Included With This Item

  • APC 200/208V Basic Rack Power Distribution Units
  • Installation Guide
  • Rack Mounting Brackets
  • Toolless Mounting Kit
  • APC 2 Years Warranty

Key Features

  • Supplies Power from One Branch Whip to Multiple Pieces of Equipment
  • Wide Range of Input and Output Connections
  • Includes Horizontal, Vertical and Toolless-Mount Varieties

Technical Specs

Nominal Output Voltage 120V
Maximum Total Current Draw per Phase 20A
Output Connections (42) NEMA 5-20R
Overload Protection No
Nominal Input Voltage 208V 3PH
Input Frequency 50/60 Hz
Regulatory Derated Input Current 16A (North America)
Input Connections NEMA L21-20P
Cord Length 3ft (0.91m)
Number of Power Cords 1
Maximum Input Current per phase 20A
Load Capacity 5700 VA
Operating Environment 32 - 113deg.F (0 - 45deg.C)
Operating Relative Humidity 5 - 95%
Operating Elevation 0-10000ft (0-3000m)
Storage Temperature -13 - 149deg.F (-25 - 65deg.C)
Storage Relative Humidity 5 - 95%
Storage Elevation 0-50000ft (0-15000m)
Dimensions (HxWxD) 70.00x2.20x1.73" (177.8x5.58x4.39cm)
Weight 12.00lbs (5.44kg)
