American Power Conversion (APC)

American Power Conversion (APC) AP7580 Basic Rack PDU Extender, Basic, 2U, 30A, 120V Out, 4xNEMA L5-20R

SKU: APCAP7580 MFR: AP7580
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist In Stock

About the American Power Conversion (APC) AP7580

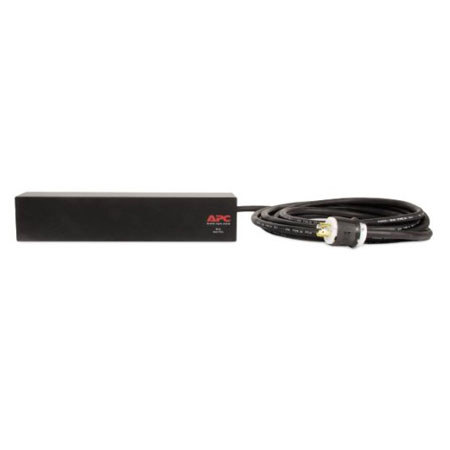

The APC AP7580 Basic Rack PDU Extender allows users to distribute power to their rack-mount equipment. With a load capacity of 4992 VA and an input voltage of 208 V, this PDU supplies power from one branch whip to multiple pieces of equipment. It also features 4 NEMA L5-20R output connections and delivers output voltages of 120 V.

American Power Conversion (APC) AP7580 Includes

  • APC AP7580 Basic Rack PDU Extender
  • Installation Guide
  • Rack Mounting Brackets
  • APC 2 Years Warranty

American Power Conversion (APC) AP7580 Specifications

Nominal Output Voltage 120V
Maximum Total Current Draw per Phase 24A
Output Connections (4) NEMA L5-20R
Nominal Input Voltage 120V, 208V
Input Frequency 50/60 Hz
Regulatory Derated Input Current 24A (North America)
Input Connections NEMA L14-30P
Cord Length 28' / 8.53m
Number of Power Cords 1
Maximum Input Current per phase 30A
Load Capacity 4992 VA
Operating Environment 32 - 113 deg.F (0 - 45 deg.C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature -13 - 149 deg.F (-25 - 65 deg.C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Regulatory Approvals cUL Listed, CSA C22.2 No. 107.1, METI Denan, UL 1778, UL Listed
Dimensions (HxWxD) 3.50x17.20x3.50" / 8.89x43.68x8.89cm
Weight 14 lbs / 6.35 kg
