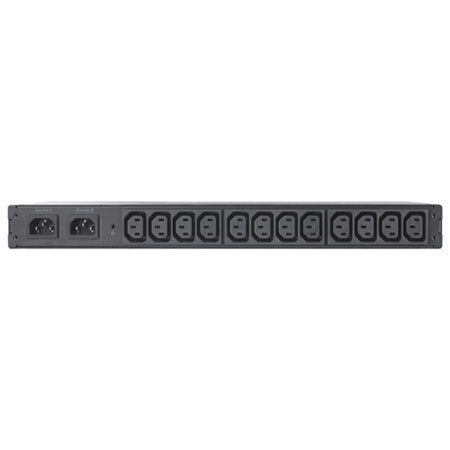

American Power Conversion (APC) AP7721 Rack Automatic Transfer Switch, 10A, 12xIEC 320 C13

American Power Conversion (APC)
SKU: APCAP7721 MFR: AP7721
American Power Conversion (APC) AP7721: Picture 1 thumbnail American Power Conversion (APC) AP7721: Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

$793.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC) AP7721

The APC AP7721 Rack Automatic Transfer Switch provide reliable, redundant power to single-corded equipment. It has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. Networked units have built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.

American Power Conversion (APC) AP7721 Features

  • Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display
  • Remote Management Capabilities: Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure and manage units from remote locations to save valuable time
  • Dual Input Power Sources: Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source

American Power Conversion (APC) AP7721 Specifications

Maximum Total Current Draw per Phase
10A
Output Connections
(12) IEC 320 C13
Overload Protection
No
Nominal Input Voltage
200V, 208V, 230V
Input Frequency
47 - 63 Hz
Input Connections
IEC-320 C14
Maximum Line Current per phase
10A
Maximum Input Current per phase
10A
Operating Environment
23 - 113 deg.F (-5 - 45 deg.C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 deg.F (-25 - 65 deg.C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Regulatory Approvals
EN 55022 Class A, FCC Part 15 Class A
Dimensions (HxWxD)
1.72x17x9" / 4.36x43.18x22.86cm
Weight
8.65 lbs / 3.92 kg
