American Power Conversion (APC)

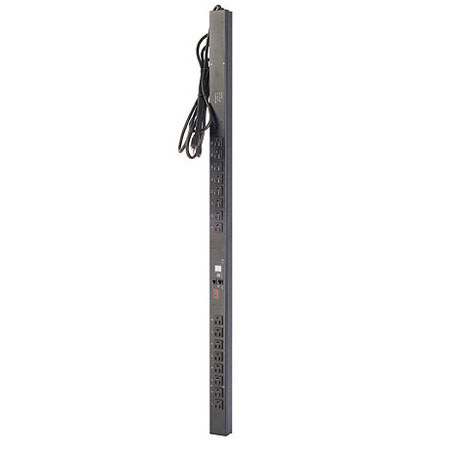

American Power Conversion (APC) Metered Rack 100/120V Zero U Power Distribution Units, 15A, (16) NEMA 5-15R Output/ NEMA 5-15P Input

SKU: APCAP7831 MFR: AP7831
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About this item

APC Metered Rack 100/120V Zero U is a power distribution units that monitor the aggregate power consumption of connected equipment. This PDU provide power distribution as well as equips on-site installers with the ability to monitor the aggregate current draw as equipment is connected to the unit. This Metered Rack PDU also have alarm thresholds that when exceeded alert users of potential problems. This features help eliminate the possibility of an overloaded circuit.

What's Included With This Item

  • APC 100/120V Metered Rack Power Distribution Units
  • Cord Retention Brackets
  • Installation Guide
  • Rack Mounting Brackets
  • Toolless Mounting Kit
  • User Manual
  • APC 2 Years Warranty

Key Features

  • Toolless Mounting Capabilities: Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure
  • Vertical Mounting Capabilities: Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures
  • Remote Management Capabilities: Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure and manage units from remote locations to save valuable time
  • Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display
  • Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
  • Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
  • Integrates with InfraStruXure Central: An IT-ready, scalable monitoring system that collects, organizes and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Flash Upgradeable: Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released
  • Rack-Mountable: Includes horizontal, vertical and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment

Technical Specs

Nominal Output Voltage 120V
Maximum Total Current Draw per Phase 15A
Output Connections (16) NEMA 5-15R
Overload Protection No
Nominal Input Voltage 100V, 120V
Input Frequency 50/60 Hz
Regulatory Derated Input Current 12A (North America)
Input Connections NEMA 5-15P
Cord Length 10ft (3.05m)
Acceptable Input Voltage 100-120 VAC
Number of Power Cords 1
Maximum Line Current per phase 15A
Maximum Input Current per phase 15A
Load Capacity 1440 VA
Operating Environment 23 - 113deg.F (-5 - 45deg.C)
Operating Relative Humidity 5 - 95%
Operating Elevation 0-10000ft (0-3000m)
Storage Temperature -13 - 149deg.F (-25 - 65deg.C)
Storage Relative Humidity 5 - 95%
Storage Elevation 0-50000ft (0-15000m)
Regulatory Approvals cUL Listed, cUL Recognized, CSA C22.2 No. 42, CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, Industry Canada, METI Denan, UL 60950-1, UL Listed, VCCI
Dimensions (HxWxD) 49.00x2.20x1.75" (124.46x5.58x4.44cm)
Weight 12.00lbs (5.44kg)
