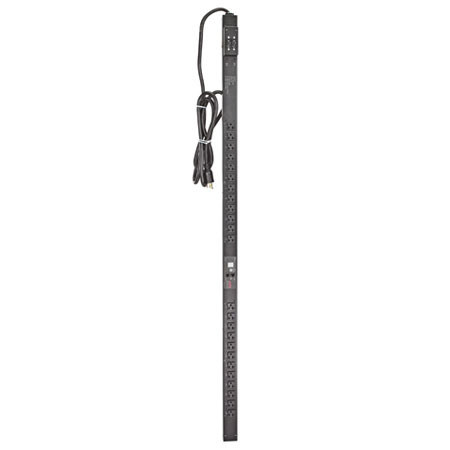

American Power Conversion (APC) AP7832 Zero U Metered Rack PDU, 120V Output, 24xNEMA 5-20R

SKU: APCAP7832 MFR: AP7832
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$403.49
Qty:

Add to Wishlist In Stock

About the American Power Conversion (APC) AP7832

The APC AP7832 Zero U Metered Rack PDU provides power distribution as well as equips on-site installers with the ability to monitor the aggregate current draw as equipment is connected to the unit. This PDU also have alarm thresholds that when exceeded alert users of potential problems. This feature helps eliminate the possibility of an overloaded circuit.

American Power Conversion (APC) AP7832 Includes

  • APC AP7832 Zero U Metered Rack PDU
  • Rack Mounting Brackets
  • Toolless Mounting Kit
  • User Manual
  • APC 2 Years Warranty

American Power Conversion (APC) AP7832 Features

  • Toolless Mounting Capabilities: Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure
  • Vertical Mounting Capabilities: Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures
  • Resettable circuit breakers: Enables a quick recovery from overload events
  • Remote Management Capabilities: Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure and manage units from remote locations to save valuable time
  • Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display
  • Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
  • Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
  • Integrates with InfraStruXure Central: An IT-ready, scalable monitoring system that collects, organizes and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Flash Upgradeable: Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections

American Power Conversion (APC) AP7832 Specifications

Nominal Output Voltage 120V
Maximum Total Current Draw per Phase 24A
Output Connections (24) NEMA 5-20R
Overload Protection No
Nominal Input Voltage 100V, 120V
Input Frequency 50/60 Hz
Regulatory Derated Input Current 24A (North America)
Input Connections NEMA L5-30P
Cord Length 10' / 3.05m
Number of Power Cords 1
Maximum Input Current per phase 30A
Load Capacity 2880 VA
Operating Environment 32 - 113 deg.F (0 - 45 deg.C)
Operating Relative Humidity 5 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature -13 - 149 deg.F (-25 - 65 deg.C)
Storage Relative Humidity 5 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Regulatory Approvals cUL Listed, CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL 60950-1
Dimensions (HXWXD) 63.75x2.19x1.73" / 161.92x5.564x4.39cm
Weight 12.50 lbs / 5.66 kg
