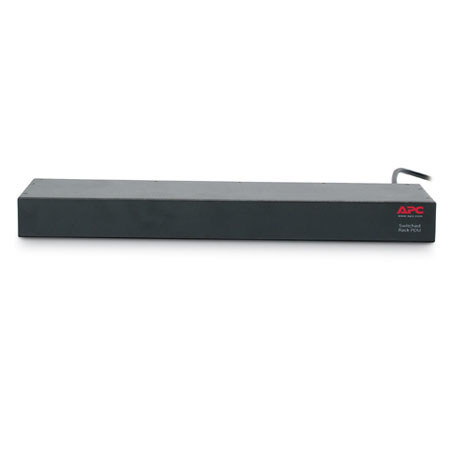

American Power Conversion (APC) AP7920 1U Switched Rack PDU, 230V Output, 8xIEC 320 C13

American Power Conversion (APC)
American Power Conversion (APC) AP7920: Picture 1 thumbnail American Power Conversion (APC) AP7920: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC) AP7920

The APC AP7920 1U Switched Rack PDU is premium solution to many of the power management problems seen in today IT environments. Some of the problems are unauthorized use of power outlets, locked-up equipment, in-rush current, overloaded circuits and the need of remote access to power outlets in the rack. The Switched Rack PDUs address these problems through individual outlet control, power on and off delays, current monitoring, alarm thresholds and network management. Users can access, configure and control the Switched Rack PDUs through Web, SNMP, or Telnet Interfaces.

American Power Conversion (APC) AP7920 Features

  • Network Management: Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure and manage units from remote locations to save valuable time
  • Remote Individual Outlet Control: Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment)
  • Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
  • Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display
  • Power Delays: Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads
  • Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
  • Flash Upgradeable: Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released
  • Integrates with InfraStruXure Central: An IT-ready, scalable monitoring system that collects, organizes and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections

American Power Conversion (APC) AP7920 Specifications

Nominal Output Voltage
208V, 230V
Maximum Total Current Draw per Phase
Different voltages & amperages
10A at 230V, 12A at 208V
Output Connections
(8) IEC 320 C13
Nominal Input Voltage
200V, 208V, 230V
Input Frequency
50/60 Hz
Regulatory Derated Input Current
12A (North America)
Input Connections
IEC-320 C14
Cord Length
6.5' / 1.98m
Number of Power Cords
Acceptable Input Voltage
200-240 VAC
Maximum Input Current per phase
Load Capacity
2300 VA
Operating Environment
32 - 113 deg.F (0 - 45 deg.C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 deg.F (-25 - 65 deg.C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Regulatory Approvals
cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI
Dimensions (HxWxD)
1.73x17.50x4.25" / 4.39x44.45x10.79cm
5 lbs / 2.26 kg
