American Power Conversion (APC)

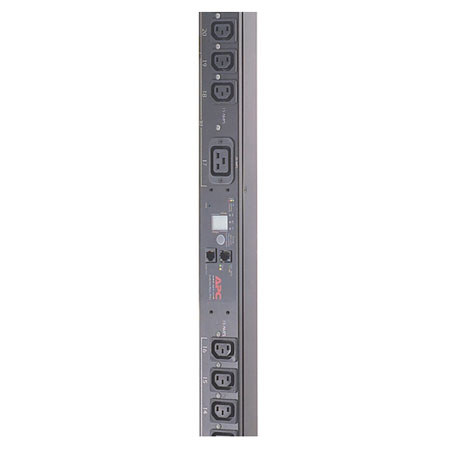

American Power Conversion (APC) AP7968 Zero U Switched Rack PDU, 208V Output, 21xIEC 320 C13, 3x IEC 320 C19

SKU: APCAP7968 MFR: AP7968
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,279.95 $50 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the American Power Conversion (APC) AP7968

The APC AP7968 Zero U Switched Rack PDU is power distribution that remotely controls power to individual outlets and monitors the aggregate power consumption. The Switched Rack PDU address power management problems through individual outlet control, power on and off delays, alarm thresholds and network management. The Switched Rack PDU provide an aggregate current draw, which can be viewed remotely or locally, via digital display.

American Power Conversion (APC) AP7968 Includes

  • APC AP7968 Zero U Switched Rack PDU
  • Cord Retention Brackets
  • Installation Guide
  • Documentation CD
  • Rack Mounting Brackets
  • RS-232 Configuration Cable
  • Toolless Mounting Kit
  • APC 2 Years Warranty

American Power Conversion (APC) AP7968 Features

  • Toolless Mounting Capabilities: Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure
  • Local and web-based monitoring: Status available to customers both in the data center and remotely
  • Vertical Mounting Capabilities: Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures
  • Resettable circuit breakers: Enables a quick recovery from overload events
  • Network Management: Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure and manage units from remote locations to save valuable time
  • Remote Individual Outlet Control: Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment)
  • Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
  • Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display
  • Power Delays: Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads
  • Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
  • Flash Upgradeable: Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released
  • Integrates with InfraStruXure Central: An IT-ready, scalable monitoring system that collects, organizes and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections

American Power Conversion (APC) AP7968 Specifications

Nominal Output Voltage 208V
Maximum Total Current Draw per Phase 35A
Output Connections (21) IEC 320 C13
(3) IEC 320 C19
Overload Protection Yes
Nominal Input Voltage 208V 3PH
Input Frequency 50/60 Hz
Input Connections CS8365
Cord Length 3' / 0.91m
Number of Power Cords 1
Maximum Input Current per phase 35A
Maximum Line Current per phase 35A
Load Capacity 12.5 kVA
Operating Environment 23 - 113 deg.F (-5 - 45 deg.C)
Operating Relative Humidity 5 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature -13 - 149 deg.F (-25 - 65 deg.C)
Storage Relative Humidity 5 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Regulatory Approvals cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, UL 60950, UL Listed
Dimensions (HxWxD) 70x2.20x3.50" / 177.8x5.58x8.89cm
Weight 17.78 lbs / 8.06 kg
