American Power Conversion (APC) AP8858NA3 Zero U Metered Rack PDU, 20A, 208V Output, 18xIEC 320 C13, 2xIEC 320 C19

SKU: APCAP8858NA3 MFR: AP8858NA3

Our Price

$387.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships in 1-2 Days

See all shipping options

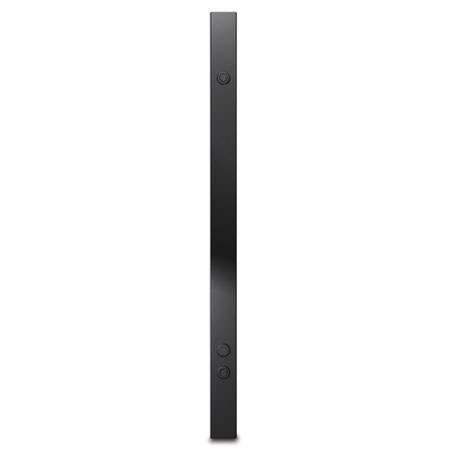

American Power Conversion (APC) AP8858NA3: Picture 1 regular $387.49

About American Power Conversion (APC) AP8858NA3

The APC AP8858NA3 Zero U Metered Rack PDU provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity and Energy Efficiency.

American Power Conversion (APC) AP8858NA3 Features

  • Remote Management Capabilities: Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure and manage units from remote locations to save valuable time
  • Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display
  • Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
  • Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
  • Integrates with InfraStruXure Central: An IT-ready, scalable monitoring system that collects, organizes and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
  • Flash Upgradeable: Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections

American Power Conversion (APC) AP8858NA3 Specifications

Nominal Output Voltage
208V
Maximum Total Current Draw per Phase
16A
Output Connections
(18) IEC 320 C13
(2) IEC 320 C19
Overload Protection
No
Nominal Input Voltage
200V, 208V, 230V
Input Frequency
50/60 Hz
Regulatory Derated Input Current
16A (North America)
Input Connections
NEMA L6-20P
Cord Length
9.84' / 3 m
Number of Power Cords
1
Acceptable Input Voltage
100-240 VAC
Maximum Input Current per phase
20A
Operating Environment
23 - 113 deg.F (-5 - 45 deg.C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 deg.F (-25 - 65 deg.C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Regulatory Approvals
CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
Dimensions (HxWxD)
35.50x2.20x1.72" / 90.17x5.58x4.36cm
Weight
6.44 lbs / 2.92 kg
Mfr #
AP8858NA3
SKU
APCAP8858NA3
