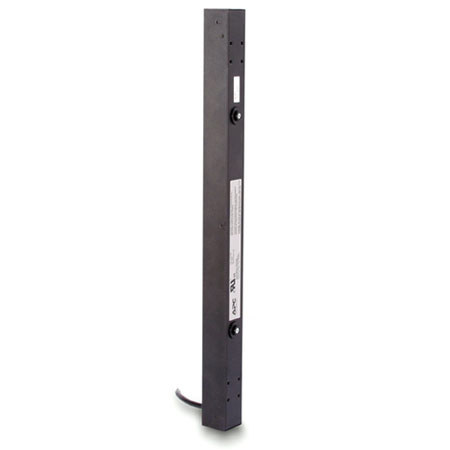

American Power Conversion (APC) Basic Rack 100/120V Zero U Power Distribution Units, 1.80 kVA Power Rating

American Power Conversion (APC)
SKU: APCAP9567 MFR: AP9567
American Power Conversion (APC) : Picture 1 thumbnail American Power Conversion (APC) : Picture 2 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC)

The APC Basic Rack 100/120 V Zero U Power Distribution Units allow users to distribute power outlets to rack-mount equipment with low cost power distribution. APC offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.

American Power Conversion (APC) Features

  • Toolless Mounting Capabilities: Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure
  • Vertical Mounting Capabilities: Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures
  • Rack-Mountable: Includes horizontal, vertical and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment

American Power Conversion (APC) Specifications

Nominal Output Voltage
100V, 120V
Maximum Total Current Draw per Phase
Output Connections
(14) NEMA 5-15R
Overload Protection
Nominal Input Voltage
100V, 120V
Input Frequency
50/60 Hz
Regulatory Derated Input Current
12A (North America)
Input Connections
NEMA 5-15P
Cord Length
12ft (3.65m)
Number of Power Cords
Maximum Input Current per phase
Load Capacity
1800 VA
Operating Environment
32 - 113deg.F (0 - 45deg.C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000ft (0-3000m)
Storage Temperature
-13 - 149deg.F (-25 - 65deg.C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000ft (0-15000m)
Regulatory Approvals
cUL Listed, METI Denan, UL Listed
Dimensions (HxWxD)
24.00x1.76x1.76" (60.96x4.47x4.47cm)
4.80lbs (2.17kg)
