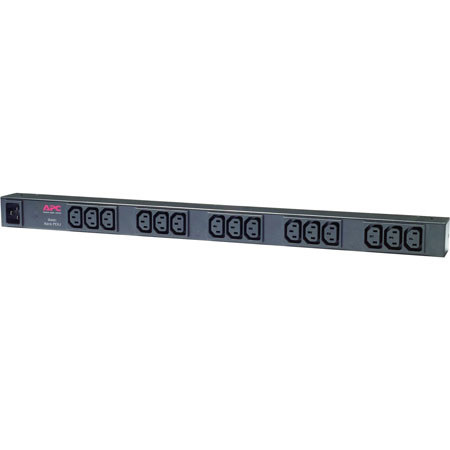

American Power Conversion (APC) APC Basic Rack 208/230V Zero U Specifications

  • Nominal Output Voltage

    200V, 208V, 230V

  • Maximum Total Current Draw per Phase

    16A

  • Output Connections

    (15) IEC 320 C13

  • Nominal Input Voltage

    200V, 208V, 230V

  • Input Frequency

    50/60 Hz

  • Input Connections

    IEC-320 C20

  • Cord Length

    8.2ft (2.49m)

  • Number of Power Cords

    1

  • Maximum Input Current per phase

    16A

  • Maximum Line Current per phase

    16A

  • Load Capacity

    3680 VA

  • Operating Environment

    32 - 113deg.F (0 - 45deg.C)

  • Operating Relative Humidity

    5 - 95%

  • Operating Elevation

    0-10000ft (0-3000m)

  • Storage Temperature

    -13 - 149deg.F (-25 - 65deg.C)

  • Storage Relative Humidity

    5 - 95%

  • Storage Elevation

    0-50000ft (0-15000m)

  • Regulatory Approvals

    cUL Listed, CE, Queensland Australia, UL 60950, UL Listed, VDE

  • Dimensions (HxWxD)

    24.40x1.75x1.75" (61.97x4.44x4.44cm)

  • Weight

    4.40lbs (1.99kg)

About American Power Conversion (APC) APC Basic Rack 208/230V Zero U

The APC Basic Rack 208/230 V Zero U Power Distribution Units allow users to distribute power outlets to rack-mount equipment. APC AP9572 is a Basic Rack PDU that mounts vertically without tools in the rear channel of a NetShelter VX.

American Power Conversion (APC) APC Basic Rack 208/230V Zero U Features

  • Toolless Mounting Capabilities: Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure
  • Vertical Mounting Capabilities: Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures
  • Rack-Mountable: Includes horizontal, vertical and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment
  • Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment

Key Features

  • Toolless Mounting Capabilities
  • Vertical Mounting Capabilities
  • Single input power source
  • Rack-Mountable

What's in the box:

  • APC 100/120V Metered Rack Power Distribution Units
  • Rack Mounting Brackets
  • Toolless Mounting Kit
  • User Manual
  • APC 2 Years Repair or Replace Warranty
