American Power Conversion (APC)

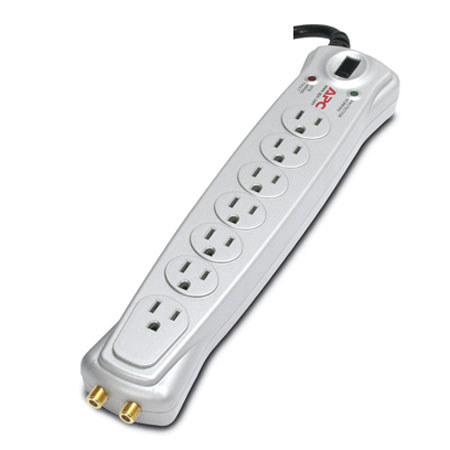

American Power Conversion (APC) P7V-LM A/V Surge Protector, 7 Outlet with Coax Protection, 120V Input Voltage, 50/60Hz Input Frequency, 6 Feet Cord Length, Silver Satin

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Expedited Shipping On Orders Over $49
Free Shipping
Add to Wishlist

About the American Power Conversion (APC) P7V-LM

The APC P7V-LM is a Audio/video Surge Protector. It provides cable line protection, coax protection, fail safe mode, IEEE let-through rating and UL 1449 compliance, lightning and surge protection, noise filtering, status indicator LEDs, surge protection and transformer block spacing.

American Power Conversion (APC) P7V-LM Includes

  • APC P7V-LM A/V Surge Protector
  • 6 Feet Gold Plated Coaxial Cable
  • User Manual
  • APC Lifetime Warranty

American Power Conversion (APC) P7V-LM Features

  • Status Indicator LED's: Provides a quick visual indication of your unit's status
  • Lightning and Surge Protection: To prevent damage to your equipment from power surges and spikes
  • Building Wiring Fault Indicator: Immediately warns you of wiring problems like improper grounds that could cause shocks or prevent adequately suppressing surges
  • Catastrophic Event Protection: SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment
  • IEEE let-through rating and UL 1449 compliance: The 'Institute of Electrical and Electronics Engineers' (IEEE) Let-Through Voltage rating is based on a test that subjects a Surge Protector to a 6,000 volt spike. The rating equates to the amount of excess voltage that reaches connected equipment
  • Noise Filtering: Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment

American Power Conversion (APC) P7V-LM Specifications

Number of Outlets 7
Receptacle Style NEMA 5-15R
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 5 Hz (auto sensing)
Input Connections NEMA 5-15P
Maximum Line Current per phase 15A
Cord Length 6 feet (1.83 meters)
Surge energy rating 840 Joules
Peak Current Normal Mode 10 kAmps
Peak Current Common Mode 10 kAmps
Data Line Protection Cable modem / Video protection
Let Through Voltage Rating < 330
Operating Environment 32 - 104 Deg.F (0 - 40 Deg.C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 5 - 113 Deg.F (-15 - 45 Deg.C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Regulatory Approvals CSA,UL 1363,UL 1449
UL 1449 TVSS Rating 330V
Dimensions (H x W x D) 12.50 x 3 x 1.40" / 318 x 76 x 36mm
Weight 1.10 lbs. (0.50 kg)
