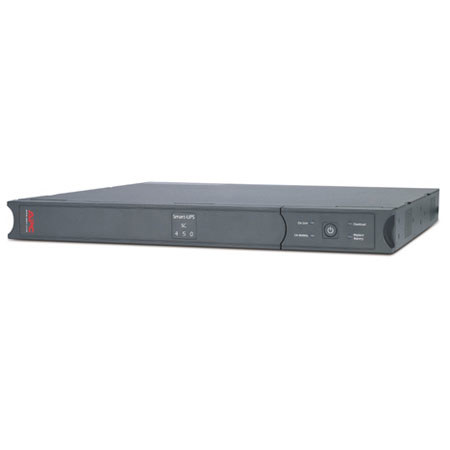

American Power Conversion (APC) Smart-UPS SC 450VA 120V 1U Rackmount/Tower

SKU: APCSC450RM1U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-08-04T20:00:00

Rated 2 out of 5

One works, One does not. Support is awful.

I have two of these, one works, the other turns itself off and requires you to unplug from the wall before you can turn it back on. If that's how you want your UPS to work, then these will work for you! and, forget about support helping, totally useless. (Jonathan Neil)

Rodger D.

2020-11-07T19:00:00

Rated 1 out of 5

not for home network cases

not for home network. Is a 1 U but is too deep for a home network rackmount

AManuel

2020-01-26T19:00:00

Rated 5 out of 5

Small Rackmount Classic

Great performing little 450VA Rackmount UPS. Sturdy and reliable. Tons of features for the price, can't go wrong. Highly recommended!

Splattered23

2019-12-19T19:00:00

Rated 5 out of 5

Solid and reliable

APC provides a reliable and appropriately priced solution. Like that it has SC.

reviewAPC

2019-12-19T19:00:00

Rated 5 out of 5

Solid and reliable

APC provides a reliable and appropriately priced solution. Like that it has SC.

APC4U

2018-09-16T20:00:00

Rated 3 out of 5

Good UPS Option

More of a mid size business options, but workable. I would prefer the APC Smart UPS options that a bit smaller. This does not compete with them for the price point.

RKTech

2018-02-22T19:00:00

Rated 5 out of 5

Can't Get Much Smaller than This!

For extremely small rack deployments, this is about the most minimal UPS you can get. But its short depth is a definite advantage in many situations. Sometimes a small, dedicated UPS is all you need for a compact installation.

esstek

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk3288a

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk3428jd

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk339fsjk

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk3323sdk0

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk33dahu

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk328fjj

2017-12-20T19:00:00

Rated 5 out of 5

perfect!

Pros: This unit is exactly what I needed. I had a Active PFC power supply, so wanted to make sure to have a pure sine way UPS. This unit runs my server (Quad core Xeon 3400 series, eight drives, lots of fans), router, two switches, wap and still runs for around 15minutes.

osudk3329094d

2017-05-09T20:00:00

Rated 4 out of 5

Easily Mounted and Dependable

I like the form factor of these and have not had an issue with any of their deployments!

RD

2017-05-09T20:00:00

Rated 4 out of 5

Easily Mounted and Dependable

I like the form factor of these and have not had an issue with any of their deployments!

0

2017-04-24T20:00:00

Rated 5 out of 5

Space Saver

Great unit that doesn't take up all your space but gets the job done. Also a great price.

AE

2017-04-24T20:00:00

Rated 5 out of 5

Space Saver

Great unit that doesn't take up all your space but gets the job done. Also a great price.

0

2017-04-23T20:00:00

Rated 5 out of 5

Great UPS

this is a great UPS for small business network protection

0

2017-04-22T20:00:00

Rated 5 out of 5

Great UPS

this is a great UPS for small business network protection

Psychsoft

2017-04-20T20:00:00

Rated 5 out of 5

Great Purchase!

Exactly what I needed

0

2017-04-10T20:00:00

Rated 5 out of 5

Perfect for gateway

This is a great device to put in a demarc to support Router, and firewall Broadband modem, even a WAN switch. I don't like putting those device on shared UPS that may have high draw loads. this is a great way to provide dedicated power support.

JustC

2017-04-10T20:00:00

Rated 5 out of 5

Perfect for gateway

This is a great device to put in a demarc to support Router, and firewall Broadband modem, even a WAN switch. I don't like putting those device on shared UPS that may have high draw loads. this is a great way to provide dedicated power support.

0

2017-03-16T20:00:00

Rated 5 out of 5

Great Product

Great Quality

0

2012-11-13T19:00:00

Rated 4 out of 5

If you want to manage this product via the network be sure you get the unit with a network management card. The card will eliminate the phone/network surge protection ports. We use these units to backup our switches and has been working well for over a year. No complaints so far.

Nickname

2012-11-13T19:00:00

Rated 4 out of 5

0

If you want to manage this product via the network be sure you get the unit with a network management card. The card will eliminate the phone/network surge protection ports. We use these units to backup our switches and has been working well for over a year. No complaints so far.

0

2011-09-27T20:00:00

Rated 3 out of 5

Not network manageable

Even though the documentation under manageability states that it is network manageable it is not and can only be managed through DB9 rs232 serial.

0

2011-09-26T20:00:00

Rated 3 out of 5

Not network manageable

Even though the documentation under manageability states that it is network manageable it is not and can only be managed through DB9 rs232 serial.

Architect

2011-02-16T19:00:00

Rated 4 out of 5

Great UPS but.........

Great Smart UPS. Well made and easy to replace the battery. Only negative comment is theat because most new computers do not have a RS-232 (serial) connector, the features offered by the software are obsolete and useless.

whatever

2011-02-16T19:00:00

Rated 4 out of 5

Great UPS but.........

Great Smart UPS. Well made and easy to replace the battery. Only negative comment is theat because most new computers do not have a RS-232 (serial) connector, the features offered by the software are obsolete and useless.

0

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

American Power Conversion (APC) 450VA Specifications

  • Output Power Capacity

    280 Watts / 450 VA

  • Max Configurable Power

    280 Watts / 450 VA

  • Nominal Output Voltage

    120V

  • Output Voltage Distortion

    Less than 5% at full load

  • Output Frequency (sync to mains)

    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

  • Topology

    Line Interactive

  • Waveform Type

    Stepped approximation to a sinewave

  • Output Connections

    4 x NEMA 5-15R

  • Nominal Input Voltage

    120V

  • Input Frequency

    50/60 Hz +/- 3 Hz (auto sensing)

  • Input Connections

    NEMA 5-15P

  • Cord Length

    1.83 meters

  • Input voltage range for main operations

    82 - 144V

  • Input voltage adjustable range

    75 - 154V

  • Battery Type

    Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

  • Typical recharge time

    5 hour(s)

  • Replacement Battery

    RBC18

  • Interface Ports

    DB-9 RS-232

  • Control panel

    LED status display with On Line: On Battery: Replace Battery and Overload indicators

  • Audible Alarm

    Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

  • Emergency Power Off (EPO)

    Optional

  • Surge energy rating

    400 Joules

  • Filtering

    Full time multi-pole noise filtering: 0.7% IEEE surge let-through: zero clamping response time: meets UL 1449

  • Data Line Protection

    RJ-11 Modem/Fax protection (four wire dual line), RJ45 10/100 Base-T Ethernet protection

  • Operating Environment

    0 - 40 deg.C

  • Operating Relative Humidity

    0 - 95%

  • Operating Elevation

    0-3000 meters

  • Storage Temperature

    -15 - 45 deg.C

  • Storage Relative Humidity

    0 - 95%

  • Storage Elevation

    0-15000 meters

  • Audible noise at 1m from surface of unit

    38.00 dBA

  • Online Thermal Dissipation

    38.00 BTU/hr

  • Regulatory Approvals

    CSA, FCC Part 15 Class A, UL 1778

  • Rack Height

    1U

  • Dimensions (HxWxD)

    1.73x17x15.15" / 44x432x385mm

  • Weight

    23.74lbs / 10.77kg

  • UPC Code

    731304222705

About American Power Conversion (APC) 450VA

FEATURED REVIEWS

Small Rackmount Classic

By Splattered23

Great performing little 450VA Rackmount UPS. Sturdy and reliable. Tons of features for the price, can't go wrong. Highly recommended!

Solid and reliable

By APC4U

APC provides a reliable and appropriately priced solution. Like that it has SC.

The APC Smart-UPS SC 450VA 120V 1U Rackmount/Tower is a professional uninterruptible power supply designed to prevent blackouts, brownouts, sags and surges from reaching your valuable equipment. It filters small utility line fluctuations and isolates your equipment from danger by internally disconnecting it from the utility line.

When disconnected from the utility line, power is provided continuously from its internal battery until normal or safe conditions return or the battery is fully discharged. The unit also supplies battery-powered AC. The UPS can be used in a tower or rackmount configuration. Front-access servicing also makes it easier to manage. This unit also offers RS-232 connectivity.

American Power Conversion (APC) 450VA Features

  • Rack/Tower Convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment
  • Multiple Mounting Methods: Allows for standardization on one product for use in different environments
  • Front-Access Servicing: Simplifies installation and maintenance while minimizing space requirements

Key Features

  • Rack/Tower Convertible
  • Multiple Mounting Methods
  • Front-Access Servicing

What's in the box:

  • APC Smart-UPS SC 450VA 120V 1U Rackmount/Tower
  • Software CD
  • Rack Mounting Brackets
  • Smart UPS Signaling RS-232 Cable
  • User Manual
  • APC 2 Years Warranty
