American Power Conversion (APC) SMX1000 Smart-UPS X 800 Watts/1000 VA 2U Rack/Tower UPS with LCD Interface

American Power Conversion (APC)

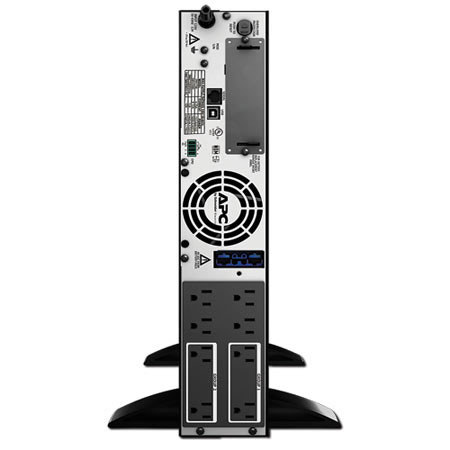

American Power Conversion (APC) SMX1000: Picture 1 thumbnail American Power Conversion (APC) SMX1000: Picture 2 thumbnail American Power Conversion (APC) SMX1000: Picture 3 thumbnail American Power Conversion (APC) SMX1000: Picture 4 thumbnail

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Top Rated Gear

Our Price

$545.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC) SMX1000

The APC SMX1000 Smart-UPS X 800 Watts/1000 VA 2U Rack/Tower UPS provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. The eight outlets are grouped and can be controlled separately from the UPS. The UPS also features a rackmountable form factor and all the hardware needed to mount it.

American Power Conversion (APC) SMX1000 Features

  • Intuitive LCD Interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
  • Predictive Replace Battery Date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
  • Multiple Switched Outlet Groups: Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
  • SmartSlot: Customize UPS capabilities with management cards
  • Cold-start Capable: Provides temporary battery power when the utility power is out
  • Serial Connectivity: Use any Home Automation network to monitor and control the S20 through its RS-232 serial port
  • Resettable Circuit Breakers: Enables a quick recovery from overload events
  • Hot-Swappable Batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Disconnected Battery Notification: Warns when a battery is not available to provide backup power
  • Automatic Self-Test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Automatic Restart of Loads After UPS Shutdown: Automatically starts up the connected equipment upon the return of utility power
  • Adjustable Voltage-Transfer Points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
  • Adjustable Voltage Sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
  • User-Replaceable Batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • USB Connectivity: Provides management of the UPS via a USB port. Serial Connectivity: Provides management of the UPS via a serial port
  • Temperature-Compensated Battery Charging: Prolongs battery life by regulating the charge voltage according to battery temperature
  • Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery
  • Intelligent Battery Management: Maximizes battery performance, life and reliability through intelligent, precision charging
  • Power Conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances
  • Safety-Agency Approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals
  • Network Manageable: Provides remote management of the UPS over the network
  • Adjustable Voltage Sensitivity: Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications
  • Predicative Failure Notification: Provides early-warning fault analysis ensuring proactive component replacement
  • LED Status Indicators: Quickly understand unit and power status with visual indicators
  • Field-Replaceable Power Distribution Panel: Ensures compatibility with equipment that has different plug types

American Power Conversion (APC) SMX1000 Specifications

Output Power Capacity
800 Watts/1000 VA
Nominal Output Voltage
120V
Output Connections
(8) NEMA 5-15R
Output Frequency (sync to mains)
47 - 63 Hz
Topology
Line Interactive
Waveform Type
Sine wave
Nominal Input Voltage
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
8' (2.44m)
Input voltage range for main operations
93 - 130V
Maximum Input Current
12A
Input Breaker Capacity
15.0 A
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time
3 hour(s)
Interface Port(s)
USB, SmartSlot
Available SmartSlot Interface Quantity
1
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery: distinctive low battery alarm: configurable delays
Emergency Power Off (EPO)
Yes
Surge energy rating
600 Joules
Filtering
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449
Operating Environment
32-104deg.F (0-40deg.C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000' (0-3000m)
Storage Temperature
5-113deg.F (-15-45deg.C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000' (0-15000m)
Audible Noise
46.00 dBA at 1 meter from surface of unit
Online Thermal Dissipation
82.00 BTU/hr
Rack Height
2U
Dimensions (HxWxD)
17.00x3.50x19.30" (43.18x8.89x49.02cm)
Weight
50.30lbs (22.81kg)

American Power Conversion (APC) SMX1000 Reviews

Review Snapshot®


4.6

(based on 7 reviews)

86%

of respondents would recommend this to a friend.

Ratings Distribution

  • 5 Stars



    (5)

  • 4 Stars



    (1)

  • 3 Stars



    (1)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Most Liked Positive Review



Good product.

Works very well. I did find the unit physically unstable when used in the "tower" option -- worried about it falling over, as the supplied plastic feet were inadequate. I converted it to the "rack" option, with much better mechanical stability.

VS

Most Liked Negative Review



I just typed in several ...

I just typed in several paragraphs about the unit, and as I was finishing a pop-up appeared to warn me that I was taking too long. It then cleared all of my text. So, rather than try to type it all in once more, I'll just say that I've had problems with this unit. I do not know if it is the individual unit that I have or something systemic. I will be calling Tech Support to try to determine how to stop the unit from failing unexpectedly. Also, why the machine sometimes starts to "click" while...

View full Review

I just typed in several paragraphs about the unit, and as I was finishing a pop-up appeared to warn me that I was taking too long. It then cleared all of my text. So, rather than try to type it all in once more, I'll just say that I've had problems with this unit. I do not know if it is the individual unit that I have or something systemic. I will be calling Tech Support to try to determine how to stop the unit from failing unexpectedly. Also, why the machine sometimes starts to "click" while in operation.

Reviewed by 7 customers


5.0

Good product.

By

from New Mexico

Works very well. I did find the unit physically unstable when used in the "tower" option -- worried about it falling over, as the supplied plastic feet were inadequate. I converted it to the "rack" option, with much better mechanical stability.


3.0

I just typed in several ...

By

from New Jersey

I just typed in several paragraphs about the unit, and as I was finishing a pop-up appeared to warn me that I was taking too long. It then cleared all of my text. So, rather than try to type it all in once more, I'll just say that I've had problems with this unit. I do not know if it is the individual unit that I have or something systemic. I will be calling Tech Support to try to determine how to stop the unit from failing unexpectedly. Also, why the machine sometimes starts to "click" while in operation.


5.0

Excellent Purchase

By

from Atlanta, GA

I've had the SMX750 for about a year now, and have enjoyed the product, so I decided to purchase another APC UPS, and this time went with the SMX1000. I am very happy with my purchase. It has all the features I need(and more). I get plenty of runtime from the battery, and I enjoy that it runs at high efficiency when power is stable.


4.0

This is a solid well ...

By

from Undisclosed

This is a solid well built unit. It currently protects a server but with PFC power supplies now apperaring in more computers, a unit such as this that provides a pure sine wave output is a requirement. I do wish however that APC would update their documentation for this product as it is incorrect in that it currently states that you can turn off the display which is no longer correct with the newer units.


5.0

Exceeded my expectations

By

from San Bruno, CA

The UPS exceeded my expectations for a scalable system.


5.0

Works like a charm

By

from The north woods of Wisconsin

Your sales literature for all of your BackUPS products should tell about the wave form and what computers will tolerate the form such as with your BackUPS RS 1300 and which require the more expensive pure sine wave back-up as this product delivers. One of your very clever techs finally figured out why I was unable to use my Windows 7 Dell Studio computer when the power flickered around here - It crashed every time there was as power fluctuation and went into a power-save mode. With your pure sine wave product, I can pull the plug and it goes on as if nothing had happened - like a charm. Saves me a tremendous amount of time and work. I can now work in bad weather and not lose my product in a fluctuation.


5.0

Nice Unit

By

from Winter Haven, Fl.

It works great and has 3 banks of outlets that should be controllable (after the software is written). It's a lot quieter than my old units. The software that came with it does not always work so I can't wait for the new software that is being written. It's heavy enough you can't put it on a table or shelf.
