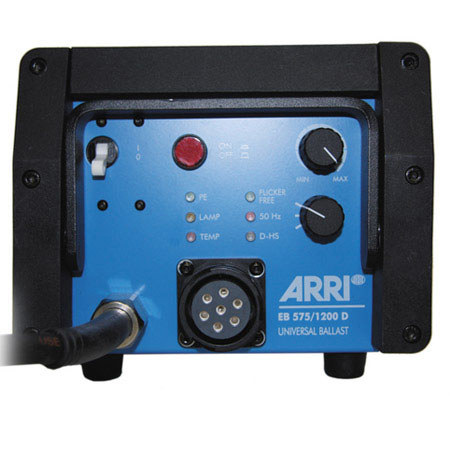

Arri 575/1200W High Speed Electronic Ballast With ALF (1000Hz)

SKU: AR505819 MFR: 505819
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$5,900.00 List Price

Our Price

$4,524.90 $176 per week
Free Shipping
Add to Wishlist

About this item

The Arri 575/1200W High Speed Electronic Ballast With ALF (1000Hz) is designed for use with Arri 575W or 1200W HMI luminaries for high-speed photography at 500 to 5000 frames per second-the ballast is set to 1000Hz rather than the typical 75Hz. It also uses ALF (Active Line Filter) which greatly increases the power efficiency of the light. It is necessary for many applications such as sports, commercials, ballistics and material testing, auto component testing and industrial projects.

Key Features

  • Flicker-free light up to 5000 fps
  • When combined with an adequate HMI lamp, at least 5 times more light output than a tungsten light of the same power
  • Light intensity increased by at least 5%
  • Constant lamp power
  • Constant color temperature
  • Constant light quality
  • Control of electric power of the lamp between 50 and 100%
  • Variation in power supply voltage of 10% has no influence on the power of the lamp
  • The ballast is built into a casing with IP21 or IP22 protection

Technical Specs

Lamp Power 575/1200W
Input Voltage 90-125/180-250VAC
Dimmer 50-100% of lamp power
Dimensions 7.8 x 5.9 x 13.2" (20 x 15 x 33.5 cm)
Weight 17.6 lbs (8 kg)
