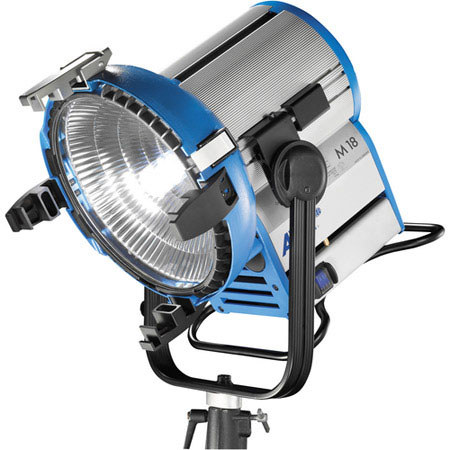

The Arri M18 HMI Lamphead (120VAC) is a newly designed, more efficient lamphead built to work with a new power class of lamp--the 1800W SE HMI (not included), which has an average life of 750 hours, a luminous efficacy of 92 lumens/watt and a Color Rendering Index (CRI) greater than 90 at 6000deg.K. The M18 is an open-face, lensless fixture that combines the characteristics of a PAR and a Fresnel, creating diverging rays of light to produce a very crisp shadow. It can operate on a 20A circuit. This lamp has a beam angle (HPA) of 20deg. to 60deg., with a wide usable field angle.
|Socket (Lampholder)||G38 High Voltage|
|Mounting||1 1/8" (29 mm) stand mount|
|Dimensions||27.5 x 15.25 x 15.25" (69.85 x 38.73 x 38.73 cm)|
|Weight||23.1 lbs (10.5 kg)|
