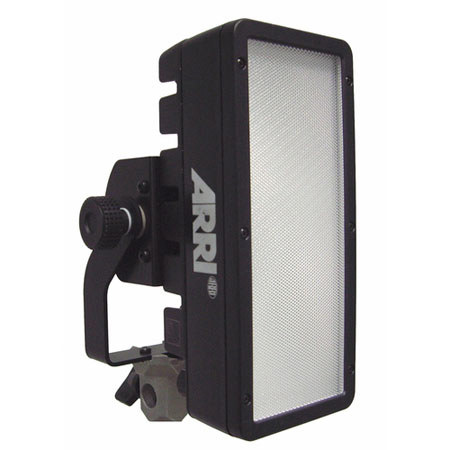

The Arri BroadCaster DMX LED Panel with Stirrup is designed for remote control via DMX, independently controlling functions like 0-100% dimming, temperature control from 2800-6500K, as well as +/- green control at distances up to 100 m.
A 3/8" (9.5 mm) female thread permits mounting the luminaire to the included Arri Caster Stirrup which provides swiveling movement and a 5/8" (16mm) receiver in a yoke-like construction. Safety features include Auto Power Off to protect LEDs from heat due to overvoltage. Accessories include a 2-leaf barndoor, gel frame and a light intensifier that doubles the luminous output of the panel.
The BroadCaster Power Supply (sold separately) accepts input voltages from 100-240VAC, 50/60Hz and outputs 24VDC. Three DMX outputs are provided each of which can support up to 3 LED panels up to a maximum of 6 panels per power supply. (4-pin DMX cable not included)
|Cable||4-Pin XLR DMX|
|Mount||3/8" (9.5 mm) Female thread|
|Dimensions||8.7 x 3.75 x 2.75" (22 x 9.5 x 7 cm)|
|Weight||Without Stirrup: 2.11 lbs (0.95 kg)|
