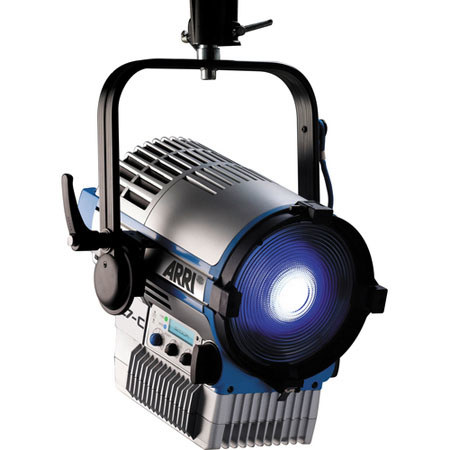

Arri L7-C Color LED Fresnel, Pole Operated, 2700-10000K Color Range, 220W Rating, Black

SKU: AR553505C MFR: L1.31335CI

List Price: $3,695.00

Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $149.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $184.95
20% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Arri L7-C

The Arri L7-C Color LED Fresnel (Pole Operated, Black) is part of is at the vanguard of a new generation of lighting equipment that can be seamlessly integrated into the studio or onto the set without sacrificing features or performance.

The key characteristic of any Fresnel is flood to spot capability and the L7-C meets and exceeds expectations with an impressive beam angle of 15-50deg. There's simply no learning curve or accommodation to be made when swapping out L7s fixture for fixture with standard Fresnels. In fact, you're not going to be moving them around or juggling scrims in high places thanks to the 100 - 0% on-board dimming.

The L7-C is a "fully tune-able" white light source, too, allowing you to match existing fixtures from a warm 2700K to ice-blue 10000K. The on-board controller allows manual intensity control as well as color temperature and +/- green. Specific color shades and skin tones can be matched through the full gamut color mixing feature. All of the functions can be controlled via DMX, an ideal feature for broadcast studios. And the L7-C will be seen but not heard thanks to its dead quiet passive cooling system. While inclement weather might annoy the talent it won't kill your light since L7-C has an IP54 rating making it impervious to falling rain and splashing water.

The L7-C LED source produces the equivalent of a 750W tungsten light while drawing only 220W for a savings of a whopping 75% over similar output tungsten lights. And low heat means lower AC bills in the studio. You can actually run 9 L7s off of a 20A, 110V outlet as opposed to two 1000W or three 650W standard fixtures. When it comes to performance and features, the L7-C might just be the perfect light source.

Arri L7-C Features

  • Even Light Field: Clear, defined shadows have traditionally have only been a trait of single source tungsten and daylight fixtures
  • Familiar But Revolutionary: Quality of light begins with the field. Smooth intensity, uniform color, even illumination: all are traits shared by the L-Series and conventional Arri Fresnels
  • Color: Vibrant, Full-spectrum Lighting: With the L7-C, fully tune-able white light can be adjusted for different skin tones, camera sensors and mixed-light environments, while specific color shades can be matched through full gamut color mixing
  • Focusability: A key element of the versatility of traditional Fresnels is the ability to spot and flood the beam as needed. Whether it's a flood field for a pullback shot or a tight spot for a bright highlight, the continuous focusability of the L-Series performs lives up to your expectations
  • Passive Cooling: To satisfy the rigorous sound requirements of modern broadcast studios, the groundbreaking L-Series passive cooling system incorporates no moving parts or fans and is therefore completely silent
  • Versatile, Controllable Beam: Whether shaping the beam to isolate talent and set elements or cutting the field to eliminate spill light, controllability is crucial to lighting
  • Weather Protection: One of the most significant accomplishments in terms of the L7's robustness is the IP54 rating for weather resistance
  • Focus Knobs: True Blue-style focus knobs provide the precise adjustment and rapid flood-to-spot that users enjoy from manual, mechanical control. Knobs on both sides of the fixture ensure easy access from all positions, eliminating the need for awkward reaching around the fixture
  • Sliding Stirrups: The ARRI sliding stirrup design enables precise adjustment of the fixture's center of gravity, to compensate for front-end accessories. It also creates the option of pulling the fixture back and reducing its hanging height
  • Yoke: With an extremely slim profile, the extruded aluminum yoke provides high strength without added weight. An optional pole-operated yoke allows full operation of pan, tilt and focus from the floor and is therefore a popular choice for many studios
  • Tilt Lock: The high strength tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them
  • DMX Control: For broadcast studios, remote fixture control is of paramount importance and all functions of the L7 are controllable through DMX
  • On-board Control: The on-board controller has manual intensity adjustment and additional controls for color temperature and plus/minus green, which can be switched to manipulate hue and saturation at the touch of a button
  • Energy Savings: L-Series fixtures reduce electricity usage by 75% and their LED light engines last 200 times longer than normal bulbs, when compared to conventional tungsten Fresnels
  • Location Applications: Lighting teams working on location will love the versatility they can achieve in small to medium-size packages. Nine ARRI L7 Fresnels can be run off a single 20 A, 110V outlet, as opposed to only two 1000W or three 650 W tungsten Fresnels
  • Upgradeable Technology: The L7 is an expansible platform designed to adapt with the latest enhancements in LED chip performance. The light engine is fully upgradeable, ensuring that the fixtures can take advantage of technology advances as and when they happen

Arri L7-C Specifications

Color Range
Color tune-able: 2700 - 10000K
Green - Magenta adjustment, full gamut color mixing
Beam Angle
15 - 50deg., continuously focusable
CRI > 90, CQS > 90
Operating Voltage
90 - 264V AC, 50 - 60Hz
Integrated, 0 - 100% Continuous, 16-bit
Weather Resistance
IP54 rated, can withstand rain and splashing water
Passive: -68 - 95deg.F (-20 to +35deg.C)
Pole Operated
Sliding stirrup, high strength tilt lock, 1 1/8" (28.5 mm) junior stud receiver
5-Pin DMX + RDM, on-board controller, USB
Dimensions (H x W x D)
Passive Cooling: Flood - spot focus: 11.8 x 8.7 x 14.8 - 18.9" (300 x 220 x 375 - 480 mm)
Active Cooling: Flood - spot focus: 300 x 220 x 328 - 433 mm (11.8 x 8.6 x 12.9 - 17.0 in
Lens diameter: 7.0" (177.8 mm)
Passive Cooling: 24 lbs (10.8 kg)
Active Cooling: 6.5 kg / 14.3lbs
