Arri H-3 Hybrid AC Kit with Wheels, 2x150 W Tungsten Fresnel Lights (120-230 V AC)

SKU: AR553962 MFR: 553962
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$5,550.00 List Price

Our Price

Free Shipping

Add to Wishlist In Stock

Protect your investment

About the Arri H-3

Flexibility is the key with the Arri H-3 Hybrid AC Kit with Wheels (120-230 V AC). It combines 2 Arri LoCaster LED variable color temperature lights with 2 Arri 150 W tungsten Fresnel fixtures. The LEDs are continuously dimmable and offer 6 different color temperatures between 2800 degrees K and 6500 degrees K. At only 2 lb each, they can fit (even with included barndoors) into places a tungsten Fresnel light can't and the included power supplies for the LEDs can operate on 120-230 V AC.

The Fresnel lights produce impressive light output and good light distribution over the full beam area (due to their short focal length wide-angle lens). Also included are power supplies, extension cables, filter frames and baby pins for the LEDs, plus barndoors, scrims, filter frames and a ceiling scissor clamp for the Fresnel lights, three 8' light stands and a carrying case with built-in wheels. Whether you're using film or modern light-sensitive digital media, a kit like this will be all you need to solve a surprising number of lighting problems. The kit is supplied for use with 120-230 V AC. The 150 W Fresnel fixtures may be operated on 220 V AC with optional plugs and bulbs.

Arri H-3 Includes

  • Arri 2 x LoCaster LED Panel with Stirrup
  • 2 x 2 Leaf Barndoor for LoCaster/BroadCaster
  • 2 x Filter Frame for Locaster LED
  • 2 x Power Supply for LoCaster (100-240V)
  • 2 x PowerDMX Extension Cable XLR 4-Pin for BroadCaster (10')
  • 2 x Baby Pin (5/8") with 3/8" Thread for LoCaster
  • 2 x 150 Watt Tungsten Fresnel Light (120-230VAC)
  • 2 x Four Leaf Barndoor Set for Arri 150W Fresnel
  • 2 x Filter Frame for 150 Watt Fresnel
  • Arri Warranty

Arri H-3 Features

  • Locaster LED: Tunable white light from tungsten to daylight
  • Locaster LED: High intensity
  • Locaster LED: Low power consumption
  • Locaster LED: Excellent shadow rendering
  • Locaster LED: CRI of 90
  • Locaster LED: Absolute color temperature and intensity stability
  • Locaster LED: Onboard control
  • Locaster LED: Easy portability
  • 150W Tungsten Fresnel: Lightweight; compact size
  • 150W Tungsten Fresnel: Robust construction of rust-resistant, extruded, die-cast aluminum
  • 150W Tungsten Fresnel: High quality 2" (50mm) Fresnel lens and reflector for excellent optical performance
  • 150W Tungsten Fresnel: Uses 100, 150, or 200W lamps
  • 150W Tungsten Fresnel: Good light distribution over the full beam area

Arri H-3 Specifications

LoCaster LED: Rating 35 watts
LoCaster LED: Color Range 2800K-6500K
LoCaster LED: Dimming 0-100%
LoCaster LED: Cable 4-Pin XLR
LoCaster LED: Mount 3/8" (9.5 mm) Female thread
LoCaster LED: Operating Voltage 11-36VDC
With Power Supply: 100-240VAC
Power Supply: Rating 60W
Operating Voltage 100-240VAC, 50-60Hz
Dimming On panel
Cable AC cord w/ 3-pin grounded US plug
Fresnel Light: Rating 150 Watts
Fresnel Light: Socket (Lampholder) BA15d
Fresnel Light: Lens (Condenser) 2" (50mm) low expansion borosillicate fresnel lens
Fresnel Light: Reflector (Mirror) Spherical specular high purity aluminum
Fresnel Light: Mounting 5/8" (16mm) stand mount
Fresnel Light: Yoke Fits on standard 5/8" stand or mounting stud
Fresnel Light: Cable 15' (4.6 m)
Fresnel Light: Focusing Worm gear driven

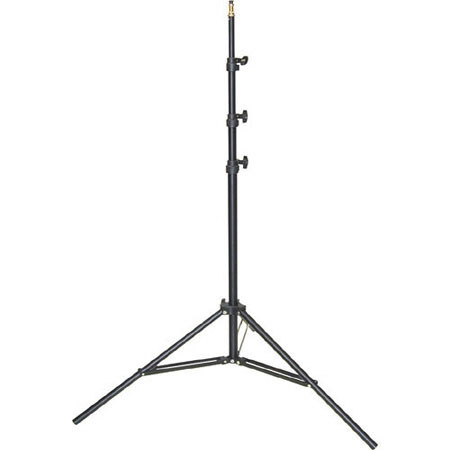

Light Stand: Minimum Height 2.25 ft (10.6 cm)
Light Stand: Maximum Height 8.3 ft (255 cm)
Light Stand: Closed Length 2.5 ft (76 cm)
Light Stand: Maximum Load 9 lbs (4.1 kg)
Light Stand: Attachment Size 5/8 in stud
Light Stand: Accepts Wheels No
Light Stand: Air Cushioned No
Lamp: Watts 150
Lamp: Volts 120
Lamp: Color Temperature 2900deg.K
Lamp: Average Life Hours 2000
Lamp: Approx. Lumens 2800
Lamp: Filament Type CC-8
Lamp: Length 62mm
Other Kit Contents 2 x Full Single Scrim for 150W Fresnel (3")
2 x Full Double Scrim for 150W Fresnel (3")
2 x Lamp for 150 Fresnel (150 Watts/120 Volts)
3 x AS-01 Lightweight Light Stand (8.3'/2.5m)
Ceiling Scissor Clamp with 5/8" Stud
Hybrid Kit Case with wheels (32x15x8.75") (16.6 lbs)
Dimensions LoCaster LED Panel with Stirrup: 8.7 x 3.75 x 2.75" (22 x 9.5 x 7 cm)
32 x 15 x 8.75" (81.3 x 38.1 x 22.2 cm)
Power Supply: 4.7 x 2.1 x 1.4" (12 x 5.5 x 3.5 cm)
Fresnel Light: 5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6 cm)
Weight LoCaster LED Panel Without Stirrup: 2.11 lbs (0.9 kg)
40.6 lbs (18.4 kg)
Power Supply: 0.66 lbs (0.3 kg)
Fresnel Light: 2.3 lbs (1 kg)
