Armasight Scope with 3.5 MOA Dot or 20 MOA Ring Reticle, Black

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$471.00 List Price

Our Price

$350.00 $14 per week
Add to Wishlist

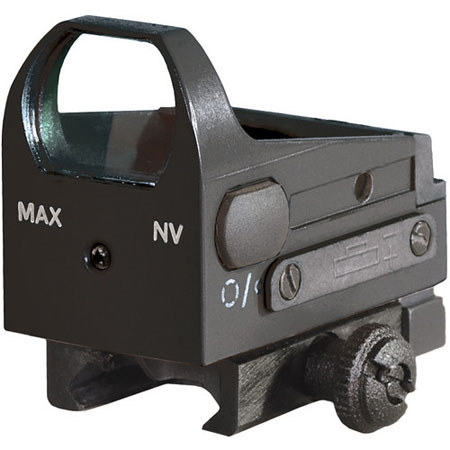

About the Armasight MCS Scope

The Armasight DAS01XX25MCSBLC MCS (Miniature Collimating Sight) Scope (Black) is a micro LED collimating sight for "both-eyes open" rapid target acquisition. The MCS is rugged, lightweight and designed to mount onto many existing optics as well as the MIL-STD=1913 Picatinny and Weaver-style rails.

The MCS features a dual reticle pattern: the user can select a 3.5 MOA Dot reticule or a 20 MOA Ring reticule pattern depending on the mission requirements. The MCS is compatible with night vision devices of all generations. Reticle intensity is regulated by an automatic brightness control sensor, which can be overridden by the user to maximum brightness mode, if required.

The MCS is designed to significantly improve accuracy and efficiency of virtually any weapon, from handguns and pistols to assault rifles and light machine guns. The compact size and versatility of the MCS make it an ideal secondary/backup optical sight. Accurate and reliable, the MCS features 1.2 MOA/click windage and 1.5 MOA/click adjustments. A unique optical design allows for a parallax-free "always on the center" reticle.

The MCS is waterproof: it has been tested against salt fog, dust, vibration, drop-tested and fired on a variety of firearms for thousands of rounds and complies with the MIL-STD 810 G standard. The MCS features a unique pivot lens cover with anti-reflective coating and works on a single, easy-to-replace 3 V CR2032 battery.

Armasight MCS Scope Includes

  • Armasight MCS Scope
  • CR 2032 Battery
  • Instruction Manual
  • MCS Black Cover
  • MCS Black Filter
  • Soft Carrying Case
  • Armasight 1 Year Parts and Labor Warranty

Armasight MCS Scope Features

  • Tactile click stops for windage & elevation adjustments
  • Switchable 3.5 MOA dot to 20 MOA ring reticle pattern
  • Automatic brightness control of the reticle based on the target area brightness
  • Rapid target acquisition
  • True night-vision compatible mode
  • User configurable open or tube sight mode
  • Riflescope mounted or weaver mounted variations
  • Easy battery replacement
  • Large heads-up display with wide field of view
  • Parallax-free performance
  • Submersible up to 33' (10 m) of water
  • Push button controls for reticle switching, manual override of auto brightness, night vision mode and on/off function
  • Anti-reflection coatings with lens cover to maintain covertness
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Armasight MCS Scope Specifications

Environmental Rating MIL-STD 810 G standard
Precision Adjustment Range ̱ 1.5deg. (degrees of arc)
Battery Type 3 V lithium battery (CR2032)
Reticle Brightness Adjustment Auto / manual (maximum or minimum positions)
Reticle Size for Dot Pattern: 3.5 (10 cm at 100 m)
Size for Circle Pattern: 20 (60 cm at 100 m)
Weapon Mount Type For Picatinny Rail or for ACOG 4 x 32 (Trijicon)
Dimensions (L x W x H) Version for Picatinny Rail: 1.88x1.57x1.85" / 4.77x3.98x4.69 cm
Version for ACOG 4 x 32: 1.88x1.73x2.04" / 4.77x4.39x5.18 cm
