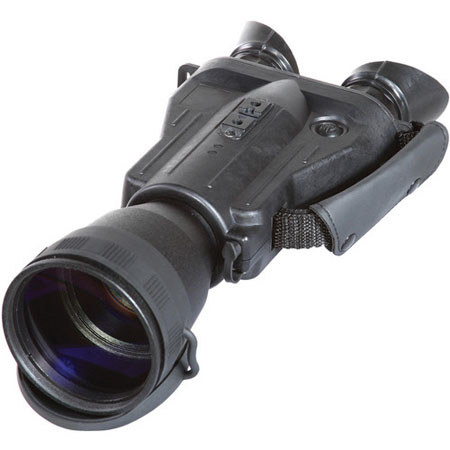

Armasight Discovery 5x Alpha GEN 3 Night Vision Binocular, 64-72 lp/mm Resolution, 10m to infinity Range of Focus, 14mm Exit Pupil

SKU: ARMD533DA1 MFR: NSBDISCOV533DA1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,879.00 List Price

Our Price

$3,595.00 $140 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The Armasight Discovery 5x Alpha GEN 3 Night Vision Binocular is a rugged lightweight night vision binocular useful for mid-range surveillance and tactical applications. This weather-sealed image intensification device is engineered to perform in a range of environments from campground to battleground. The alpha-grade GEN 3 image intensifier features 62-72 lp/mm resolution and automatic highlight cut-off circuitry that protects the tube and operator's eyes from damage.

A detachable long-range IR illuminator maximizes the capability of the Discovery 5x by allowing the operator to paint their field of view with infrared light and enhance their situational awareness. The user-friendly design features adjustable diopters, low battery indicator in the field of view and a tripod mount for comfort during extended-duration observation and missions.

What's Included With This Item

  • Armasight Discovery 5x Alpha GEN 3 Night Vision Binocular
  • CR123A 3V Lithium Battery
  • Instruction Manual
  • Lens Cap
  • Lens Tissue
  • Neck Lenyard
  • Soft Carrying Case
  • Armasight 2 Years Limited Warranty

Key Features

  • Image Intensifier: Gen 3-Alpha intensifier tube boasts 62-72 lp/mm resolution and minimal spotting caused by cosmetic blemishes on the microchannel plate. The tube is Mil-Std 810 compliant and ready for years of performance in a wide range of environmental conditions
  • Lens System: fully multi-coated all glass optics transmit clear and bright images through the 108mm f/1.5 objective. The 5.0x magnification lens delivers a 9 degree field of view mid-range focal length that still allows the operator to maintain situational awareness in the field
  • Detachable IR Illuminator: Use the included infrared illumination device as an efficient tool for extending the visible range of this night vision binocular system
  • Mil-Std 810 Compliant: Use this rugged NV device in a wide range of conditions, from the rainforest to the desert
  • Rugged, light weight and versatile
  • 5x front lenses
  • Fast, Multi-coated, all-glass optics
  • Dual eye viewing system for long viewing night time sessions
  • Detachable Long Range infrared illuminator
  • Water and fog resistance
  • Tripod mountable
  • Hand straps and neck strap for comfort of use
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Technical Specs

IIT Generation Gen 3 High Performance
Resolution 64-72 lp/mm
Magnification 5x
Battery Life 50 (3V) hrs
Lens System F1.5, 108 mm
FOV 9.5deg.
Range of Focus 10m to infinity
Exit Pupil 14mm
Diopter Adjustment +5 to -5 dpt
Controls Digital
Infrared Illuminator Detachable IR810 or IR850
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (LED indicator)
Power Supply 1 x 3V CR123A type battery
Environmental Rating MIL-810F Compliant
Operating Temperature -51 to +49 deg.C
Storage Temperature -50 to +60 deg.C
Dimensions (LxWxH) 305x140x86 mm / 12x5.51x3.38"
Weight 1.3 kg / 2.86 lbs
