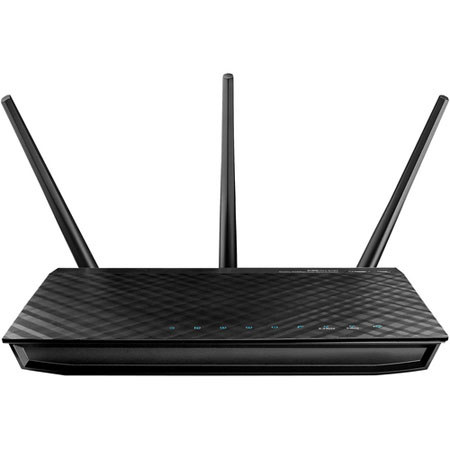

Asus RT-N66U Dual-Band Wireless-N900 Gigabit Router, 2.4 GHz and 5 GHz Operating Frequency, USB Ports

Asus RT-N66U: Picture 1 thumbnail Asus RT-N66U: Picture 2 thumbnail Asus RT-N66U: Picture 3 thumbnail Asus RT-N66U: Picture 4 thumbnail
Top Rated Gear

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Asus RT-N66U

The Asus RT-N66U dual-band wireless-N900 gigabit router delivers incredible performance and coverage range. With ASUSWRT UI, quickly set up your network, customize user access and monitor signal strength. Following the award-winning RT-N56U, the RT-N66U increases Wi-Fi speed for both 5 GHz and 2.4 GHz transmission by 50% up to 900 Mbps that makes it ideal for bandwidth demanding tasks such as 3D HD video steaming, multiplayer gaming, USB hard drive file sharing and USB connected printer sharing. Built-in Wi-Fi amplifiers make the RT-N66U the perfect wireless router for larger, multi-level homes and buildings with signal range that reaches virtually any area.

Whether you're a tech-savvy enthusiast or a first-time user, the RT-N66U is exceptional easy to use with CD-free, Quick Installation Setup (QIS) that lets you plug-n-surf right out of the box and connect PCs, smartphones, tablets and other wireless devices quickly. Thanks to its refined interface tools, you get control like never before, letting you monitor signal strength, set up parental settings and other useful functions in a robust yet intuitive way.

Asus RT-N66U Features

  • Designed for Class Leading Speed and Range: Designed with the latest in networking technology, the RT-N66U delivers exceptionally fast wired and wireless connectivity. What's more, it comes with a powerful detachable Wi-Fi antenna to further extend wireless range
  • Dual Band Connectivity for Lag Free Entertainment: Delivering both 2.4 GHz and 5 GHz concurrent bands up to 450 Mbps respectively, the RT-N66U has a total speed of up to 900 Mbps connectivity to provide speed with stability
  • Optimized and Reliable Wireless Coverage via Ai Radar: Asus Ai Radar intelligently strengthens connections to wireless devices. With high powered amplification and beam package, it provides optimized signals in any direction with better coverage to improve data throughput
  • Easy Setup Through Your Tablet, Smartphone, or PC: With the RT-N66U, setup is simple. Simply power and connect the router and then open a browser on a Wi-Fi enabled device like a laptop or tablet
  • Powerful Functions, Easiest Management: With the ASUSWRT dashboard UI, setup, monitor and control network applications all in one intuitive area. The whole new dashboard interface lets you manage all clients and settings on a single graphical interface and provides 1-click updates
  • Optimize Your Network for You: Do you game a lot, or spend most of your time streaming videos? Whatever your planned use is, the RT-N66U has a Quality of Service (QoS) that lets you select how much bandwidth is prioritized for virtually any task
  • Two Multi-Functional Built-In USB Ports: Featuring connectivity to devices, FTPs, SAMBA, UPnP AV servers and DLNA support, the RT-N66U makes sharing and networking easier with two built-in USB ports
  • Download and Stream From Anywhere: Download Master and DLNA server lets you download and play multimedia files stored on a router-attached USB storage device on DLNA compatible devices such as PCs, tablets, PS3s, XBOXes and Internet TVs
  • Powerful Online Multitasking up to 300,000 Data Sessions: Support for a massive data pipeline of up to 300,000 data sessions means the RT-N66U has around 20 times the networking capacity of other conventional routers for exceptionally smooth performance
  • Separate and Secure Wi-Fi Network via Guest Network Access: The RT-N66U supports up to three wireless networks over the 2.4 GHz band and three over the 5 GHz band, so it can protect computers from any unauthorized access, hacking and virus attacks
  • VPN Server Enabled: Easily set up a VPN server to surf the Web and access data-no matter where you are. Featuring MPPE encryption, your data transmission will be secure and confidential
  • Flexible Installation with Versatile Design: Wall-mountable, the RT-N66U fits nearly any space in the home or office

Asus RT-N66U Specifications

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6
Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 450Mbps
Frequency Range
2.4-2.48GHz / 5.1-5.8GHz
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-enterprise, WPA2-enterprise, WPS support
Firewall: SPI intrusion detection, DoS protection
Access control: Parental control, network service filter, URL filter, port filter
Detachable antenna x 3
UPnP, DLNA, DNS proxy, DHCP, NTP client, DDNS, port trigger, virtual server, DMZ
VPN Support
IPSec pass-through
PPTP pass-through
L2TP pass-through
Internet connection type: automatic IP, static IP, PPPoE (MPPE supported), PPTP, L2TP
Dual link support
Multicast proxy support
Utilities 1
Download Master
Support BT, NZB, HTTP, ED2K
Support encryption, DHT, PEX and management link
Upload and download bandwidth control
Download scheduling
Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
Utilities 2
User definable rules for IP/MAC/Port. Upload and download bandwidth management.
ACK/SYN/FIN/RST/ICMP with highest priority
Guest network
2.4GHz guest network x 3, 5GHz guest network x 3
Printer Server:
Multifunctional printer support (Windows only), LPR protocol support
File server: Samba and FTP server with account management
PPTP VPN server
Network map
Traffic monitor
4 x RJ-45 for 10/100/1000/Gigabits BaseT for LAN, 1 x RJ-45 for 10/100/1000/Gigabits BaseT for WAN
Support Ethernet and 802.3 with max. bit rate 10/100/1000/Gigabits and auto cross-over function (MDI-X) USB 2.0 x 2
WPS button, reset button, power button
LAN x 4
WAN x 1
AIR x 2
USB x 1
Power Supply
AC input: 110-240V (50/60Hz)
DC output: 19 V with max. 1.58 A current
Dimensions (W x D x H)
8.1 x 5.9 x 1.4" (207 x 148.8 x 35.5mm)
15.9 oz. (450 g)

Asus RT-N66U Reviews

Reviewed by 2 customers


Great router


from Vancouver  -  High bandwidth user

Had a Linksys e4200 before, this router has much better coverage and works great. Good web configuration interface. Media server works great, highly recommended.


Works well.


from Greer, SC  -  Low bandwidth user

The product did everything it said it would do. I am happy with the purchase.


Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Why Did You Choose This?
JONATHAN C  "The Wirecutter" web site recommended it
Prakash H  Which should I choose between RT N65U or RT N66U and why?
PHILIP K  The differences in spec are mainly the 66 has a faster wireless speed of up to 450Mb/s whilst the 56 is rated at 300Mb/s. The 66 offers more "features" like a built in print server but whether you need the extra facilities only you can tell. Like all top models manufacturers load them with features but whether they are worth the money is questionable.
hall g  is this router Mac-compatible?
GREGORY S  Yes, because IP Routing and Router Management are independent of Operating Systems and URL Browsers.
