Atdec

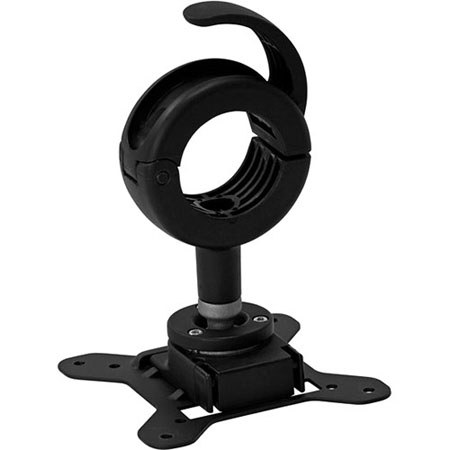

Atdec Spacedec Quick Shift Donut Display

SKU: ATCSDDO MFR: SDDO
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Atdec Spacedec Quick Shift Donut Display is designed to be used with the Spacedec Display Pole, making it possible to attach an additional display. The unit works with poles that have a diameter between 1.65" and 2" and features a quick shift lever so you can quickly move and lock the display freely along a pole without using any tools.

The Quick Shift Donut uses a ball joint that allows infinite and easy display adjustment for any viewing angle range up to 20 degrees in any direction. Even after the screen has been installed, it is easy to change its position from landscape to portrait orientation. Then, you can securely lock it into position. The built-in Quick Release mechanism ensures hassle-free and secure removal or replacement of the display.

What's Included With This Item

  • Atdec Spacedec Quick Shift Donut Display
  • Quick Shift Donut
  • 42mm Front Donut Insert
  • Visidec Groove Lock
  • 42mm Real Donut Insert
  • Security Screw
  • 2mm Allen Key
  • 5mm Allen Key
  • Tightening Tool
  • 4 x M4x10mm Screws
  • 4 x M4x16mm Screws
  • Atdec 10 Years Limited Warranty

Key Features

  • Suitable for poles with a diameter of 1.65 or 2" (42 or 50mm)
  • Supports displays weighing up to 26.5 lbs (12 kg) with VESA pattern of 75 x 75 mm or 100 x 100 mm
  • Ball joint allows infinite display adjustment for any viewing angle up to 40 degrees in any direction
  • Simple tension adjustment portrait to landscape rotation
  • Quick Shift lever allows to quickly move and lock the display freely along a pole without using any tools
  • Quick release mechanism for fast display attachment or removal
  • All mounting hardware is included to simplify installation

Technical Specs

Material Aluminum/steel/plastic
Adjustments Screen rotation (portrait/landscape): 360deg.
Tilt/pan adjustment: ball joint mechanism allows 40deg. display adjustment in any direction from the vertical plane
Display pan adjustment: 90 degrees left and right, total of 180 degrees
VESA Compatibility 4x4" (100x100mm), 3x3" (75 x 75 mm)
Load Capacity 26.5 lbs / 12.02 kg
Dimensions (LxWxH) 5.25x5.25x6.5" / 13.33x13.33x16.51cm
Weight 1.4lbs / 0.64kg
