Atdec

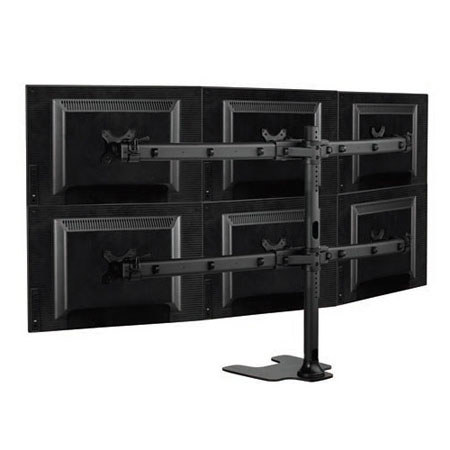

Atdec Spacedec SD-FS-H Six Monitor Desk Display Mount, 17.5 lbs Load Capacity

SKU: ATCSDFSH MFR: SDFSH
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The Atdec Spacedec SD-FS-H Six Monitor Desk Display Mount is designed to hold up to six 24" displays weighing up to 17.6 lbs each. It accommodates mounting patterns of 75x75 or 100x100 mm but can also handle 200x100 mm patterns with the purchase of an additional adapter. The steel and aluminum system can be used as either a freestanding or bolt through mount.

The Spacedec features a curved cockpit profile making it easy for viewing from multiple angles. This design is also a space saving benefit. The Spacedec features pan and tilt adjustments as well as portrait and landscape format rotation. Built-in cable management helps make for a clean and professional looking display.

What's Included With This Item

  • Atdec Spacedec SD-FS-H Six Monitor Desk Display Mount
  • Mounting Hardware
  • Atdec 10 Years Limited Warranty

Key Features

  • Accommodates six 24" monitors with a maximum width of 25" and 71.72" height per display (each up to 600mm wide in a landscape configuration)
  • Curved rail configuration for an improved viewing angle
  • Center display quick-release mechanism for easier assembly
  • Display horizontal position adjustment
  • Strong steel and aluminum construction
  • Independent monitor position adjustment allows for a combination of variable screen sizes
  • Bolt through and freestanding base mounting options (both included)
  • Integrated cable management for housing up to 12 x 8mm (0.3") cables

Technical Specs

Compatibility Accommodates six 24" monitors with a maximum width of 25" and 71.72" height per display
Mounting Hole Pattern 75x75 mm, 100x100 mm
Screen rotation (portrait/landscape) Yes
Tilt/pan adjustment 20deg. tilt and 20deg. pan display adjustment
Mount Type Freestanding
Freestanding with optional bolt down
Bolt Through
Display Height Adjustment Yes
Display Horizontal Adjustment 55.81"
Quick release head Yes, for center display
Maximum monitor width 24.0" (61.0 cm)
Maximum height and width per display should not exceed 25.0" (63.5 cm) and 71.72" (182.1 cm)
Cable management Generous & easy to use for up to 12 x 8mm cables
Mounting options Bolt Through or Freestanding base mounting options (both included)
Depth From Mounting Source 6.7" / 17.0cm
Dimensions 55.8x35.1" / 141.7x89.2cm
Base: 13.4x0.3" / 34.0x0.8cm
Load Capacity 17.5 lbs / 7.94 kg (per display)
