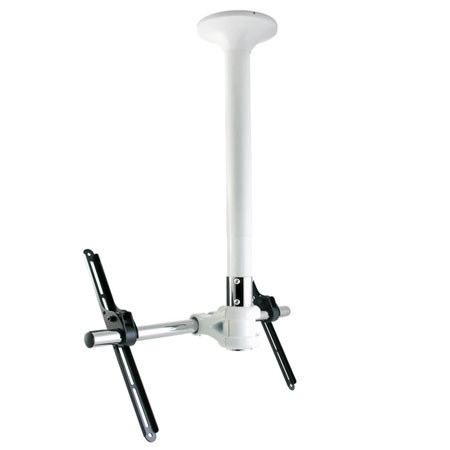

Atdec Telehook TH-3070-CTW Large Display Ceiling Mount, 200lbs Load Capacity, 360deg. Rotation, 8.6" to 78.75" Drop length

Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Add to Wishlist

About the Atdec TH-3070-CTW

The Atdec Telehook TH-3070-CTW Large Display Ceiling Mount is an extremely strong and stylish solution for attaching a medium to heavy weight LCD, LED or Plasma television to a ceiling. It is designed for commercial and home applications it features a high quality finish and enhanced security. The telescopic pole can be configured to suit a large range of height situations and features advanced internal cable management.

The removable (lockable) display brackets support a wide range of screen sizes with tilt and leveling adjustment during installation. The TH-3070-CTW comes with a mounting plate that affixes directly to the ceiling while brackets attach to the display. Cabling can be run up through the pole into a cavity area or exited at the ceiling with a cover to ensure a neat installed finish.

The display is lifted and secured in place with option for free or fixed rotation. This mount can be used with TVs and electronic signage that have either VESA or non-standard mounting hole patterns and is suitable for attachment to either timber or cement ceiling structures. And also it comes with a single display mounting head and can be upgraded with an optional accessory to support two screens in a back to back configuration.

Atdec TH-3070-CTW Includes

  • Atdec Telehook TH-3070-CTW Large Display Ceiling Mount
  • Ceiling Mount with Cover
  • Extension Pole
  • Display Bracket
  • Installation Guide
  • Display Mounting Hardware
  • Ceiling Mounting Hardware (Timber / Masonry)
  • Atdec 10 Years Limited Warranty

Atdec TH-3070-CTW Features

  • Telescopic pole allows distance adjustment from the ceiling to the centre of the display (Minimum: 8.7" /22.09cm; Maximum: 78.75" / 200.02cm)
  • Horizontal adjustment of 5deg. either way from the horizontal plane for leveling of the TV
  • 360deg. display rotation around the pole
  • Adjustable tilt of 5deg. up and 25deg. down
  • Offers true internal cable management for soft wiring (cables are fed through the pole without the need to cut the cable plugs)
  • Can be easily converted into a dual display configuration using the TH-3070-CTW-BB Dual Display Converter (sold separately)
  • Lockable (lock sold separately)

Atdec TH-3070-CTW Specifications

Load Capacity Max: 200lbs / 90.71kg
Lockable Yes (lock not included)
Mounting hole pattern support Universal from 180mm to 685mm (7.1-27") wide x 100mm to 430mm (4-17") high
Standard VESA support (mm) 200x100;200x200;200x300;300x300;
Drop length Adjustable from 8.6-78.75" / 21.84-200.02cm
Rotation around pole 360deg. (user adjustable with facility to fix during installation)
Tilt adjustment -5deg. to +25deg. (set during installation)
Horizontal adjustment +/-5deg. degrees for screen levelling (set during installation)
Cable management Internal with 1.58" access ports
Material Steel / aluminum
Number of studs required 1
