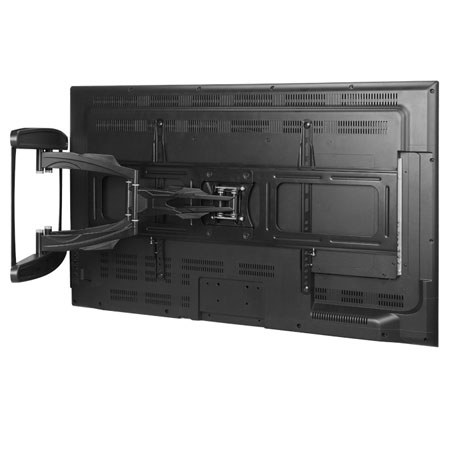

Atdec TH-3070-UFL Low Profile Full Motion Wall Mount, 132lbs Load Capacity

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

About the Atdec TH-3070-UFL

The Atdec TH-3070-UFL is a high strength, low profile, full motion wall mount for heavy displays weighing up to 132lbs (60kg). Its ultra slim design allows the display to be positioned just 1.6" (42mm) from the wall whilst still providing the capability for an extension of up to 20.3" (515mm). Its robust dual "scissor" style articulated arms make it a great choice for heavy displays and is perfect for mounting in corners and other hard to reach areas. It comes pre-assembled with a built in spirit level to ensure quick and easy installation.

Atdec TH-3070-UFL Includes

  • Atdec TH-3070-UFL Low Profile Full Motion Wall Mount
  • Fasteners
  • Atdec 10 Years Limited Warranty

Atdec TH-3070-UFL Features

  • Super slim design, allows display to sit only 1.6" (42mm) from wall (when folded)
  • The degree of pan depends on the size of the TV. Maximum allowed display width at full 60deg. pan is 1150mm (45.3")
  • Comes pre-assembled for quick and easy installation
  • Can be attached to masonry or timber stud wall
  • Comes with the installation guide and mounting hardware for masonry and timber stud installation
  • Integrated cable management

Atdec TH-3070-UFL Specifications

Load Capacity 132lbs / 59.87kg
Universal Mounting Hole Pattern From 200mm to 800mm wide
From 200mm to 400mm high
Range of Movement Via 3 pivot points
Adjustable tilt 0deg. of upward and 10deg. of downward tilt
Adjustable pan at wall 90deg. left and 90deg. right
Adjustable pan (at the mounting head) 60deg. left and 60deg. right
Horizontal adjustment range 4deg.
Maximum arm reach 20.2" / 51.30cm
Minimum distance to wall 1.6" / 4.06cm (when folded)
Minimum number of studs 2 (when attached to masonry or timber stud wall)
Material Aluminium and steel
