Atdec Telehook Universal Flush Projector Ceiling Mount

SKU: ATCTHWHPJFM MFR: THWHPJFM
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

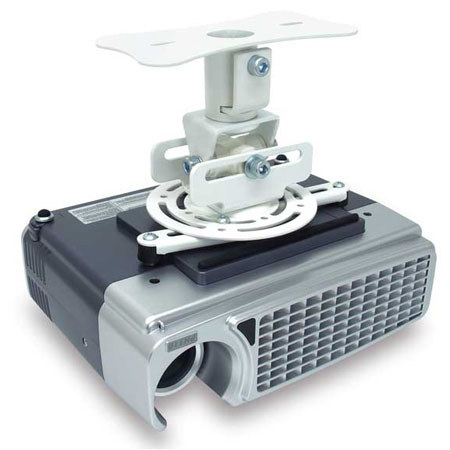

The Atdec Telehook Universal Flush Projector Ceiling Mount is a low-profile ceiling mounting solution for low to medium weight projectors. It features a two piece construction for easy installation and offers extensive angle and positional adjustment. A movable set of arms provide for universal mounting hole compatibility while the high quality finish is designed to suit both home and office environments.

The TH-WH-PJ-FM comes with a mounting plate that affixes directly to the ceiling along with a bracket that attaches to the PJ using hardware included in the pack. The PJ is lifted and slotted into place with a locking pin to prevent unauthorized removal. The projector bracket includes a gymble mechanism that provides pitch, roll, yaw and horizontal position adjustment, to enable easy and precise screen alignment.

If you are installing this mount in a commercial or office environment you may also want to purchase a Ceiling Tile insert. Depending on the matrix configuration these may be slotted in directly or sit above a tile to provide a secure attachment point with a neat and flexible finish.

What's Included With This Item

  • Atdec Telehook Universal Flush Projector Ceiling Mount
  • 4 x Nylon Anchor Plug
  • 4 x 14 Gauge Coach Screw
  • 4 x Washer 20mm
  • Atdec 10 Years Limited Warranty

Technical Specs

Quick Release mounting Yes (with security pin)
Mounting hole reach 5.13-15.75" / 13.03-40cm
Rotation around pole 360deg.
Pitch adjustment +/-40deg.
Roll adjustment +/-20deg.
Mounting options Ceiling
Positional adjustment 3" / 7.62cm
Ceiling offset 5" / 12.7cm
Number of studs required 1
Load capacity Max: 33lbs / 14.96kg (projector)
