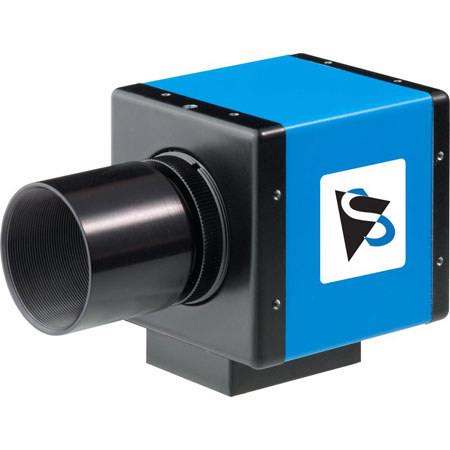

Imaging Source DBK 51AU02.AS Color USB Astronomy Camera without IR Cut Filter, 1600x1200 Pixels Resolution, C/CS Mount

SKU: ATDBK51AU02 MFR: DBK 51AU02.AS
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,000.00 $39 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Imaging Source DBK 51AU02.AS

The Imaging Source DBK 51AU02.AS Color USB Astronomy Camera is ideally suited to capture detailed images of the night sky, which demand the finest precision. The camera comes with IC Capture.AS, a comprehensive software package with which you can capture lossless and uncompressed images sequences and write them to disk as AVI files, or as a series of singular bitmaps.

The DBK 51AU02.AS ships with the color Sony ICX274AQ progressive scan CCD chip. With its 1/1.8" format, the CCD chip produces a resolution of 1600 x 1200 pixels. Even at very long exposure times - up to 60 minutes exposure are possible - noise is minimal. Thanks to this extremely high quality, the Sony ICX274AQ CCD chip is also often used in other scientific, industrial and medical image processing applications.

Imaging Source DBK 51AU02.AS Includes

  • The Imaging Source DBK 51AU02.AS Color USB Astronomy Camera
  • Software Bundle
  • The Imaging Source Warranty

Imaging Source DBK 51AU02.AS Features

  • Color Interpolation: For visualization applications, it does not make sense to view the RAW image stream from the CCD chip. It must be interpolated, before it may be viewed or saved in common formats. IC Capture.AS perform color interpolation, thus reducing the load on the DBK 51AU02.AS's processor
  • No Compression, No IR Cut Filter: The DBK 51AU02.AS does not compress the video stream it outputs - the video data that is captured by the CCD chip is outputted directly by the USB connector. Similarly, the camera does not have an IR cut filter, a color filter, nor an other kind of electronic filter
  • High Speed Data Transfer Via USB: In order to transfer the vast amount of data created by the stream of uncompressed and lossless color images to the host PC, you need a very high speed bus. Hence, the DBK 51AU02.AS is fitted with a fast USB connector

Imaging Source DBK 51AU02.AS Specifications

Video formats @ FPS 1600 x 1200, BY8 (RAW) at 12, 7.5, 3.75 FPS
1600 x 1200, UYVY at 7.5, 3.75 FPS
Dynamic range 8 bit
IR cut filter No
Optical Interface Type Progressive scan
Format 1/1.8"
Resolution H: 1600 pixel, V: 1200 pixel
Lens mount C/CS mount
Connector type USB
Supply voltage 4.5 VDC to 5.5 VDC (via USB cable)
Current consumption Approx. 500 mA at 5 VDC
Shutter (exposure time) 1/10,000 second to 60 minutes
Gain 0 dB to 36 dB
Max. temperature (operation) -5 deg.C to 45 deg.C
Max. temperature (storage) -20 deg.C to 60 deg.C
Max. humidity (operation) 20 % to 80 % non-condensing
Max. humidity (storage) 20 % to 95 % non-condensing
Dimensions (H x W x L) 50.6mm x 50.6mm x 50mm (1.99" x1.99" x 1.96")
Weight 265g (9.34 oz)
