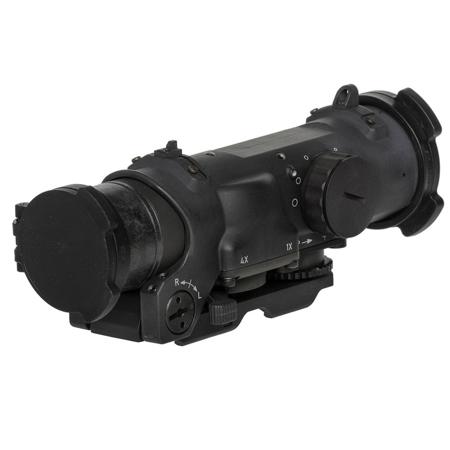

ELCAN Armament Technology SpecterDR Dual Role, 1x / 4x Optical Sight with 7.62 CX5396 Ballistic Reticle with Integral A.R.M.S. Picatinny Mount

SKU: ATDFOV14C2 MFR: DFOV14C2
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,640.00 List Price

Our Price

$2,184.00 $87 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the ELCAN Armament Technology SpecterDR Dual Role

SpecterDR is a revolutionary optical design that combines the best of close and precision fire ranged combat features into a single, low profile dual-field-of-view (DFOV) sight. SpecterDR with its dual-role capability lets soldiers move safely through buildings or confined areas in red dot mode 1x and then instantly switch to 4x to accurately engage enemies at extended range without changing sights.

Situational awareness in both magnifications is improved with ultra-wide viewing angles and unmatched viewing in low light conditions. SpecterDR is half the weight and twice the capability of carrying two scopes, without compromise to mission effectiveness or reliability.

ELCAN Armament Technology SpecterDR Dual Role Features

  • Switches instantly from close combat 1x to telescopic 4x
  • Eye relief (cheekweld) and bore sighting remain constant
  • Large, low light exit pupil remains constant
  • High efficiency broadband coatings for extended low light performance
  • Integrated lever-lock mount for optimum weight reduction
  • Rugged, Reliable Performance
  • Shock Protected Precision Optics
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ELCAN Armament Technology SpecterDR Dual Role Specifications

Magnification 4x / 1x
Reticle Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder and 'area fire' circles.
Aiming Dot diameter 1.5 MoA @ 4x, 6 MoA @ 1x
Ballistic correction 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG
CQB offset <44mm @ 60m
Field of View 26 deg @ 1x, 6.5 deg @ 4x
FoV @4x: 11.4 m @ 100 m (34.2 ft @ 100 yds)
FoV @1x: 48.8 m @ 100 m (146.3 ft @ 100 yds)
Illumination source Battery-powered LED
Crosshair illumination 5 settings, AN/PVS-22 compatible
Red Dot illumination 5 settings, AN/PVS-22 compatible
Eye Relief 70 mm
Entrance pupil 28mm
Exit pupil 8mm
Nominal focus 150m @ 4x, 70m @ 1x
Fixed focus range 20m to infinity
Exterior finish Hard-anodized aluminum, gray/black color
Adjustment resolution 0.5 minute of angle
Adjustment range 120 minutes of angle
Base requirement Mil-Std-1913 'Picatinny Rail'
Attachment ARMS Levers
Environmental Waterproof: 66 ft for 2 hours
Shockproof: 450 g's
Battery type DL 1/3N (3v Lithium)
Battery life 600 hours minimum, 3000 hours average
Dimension (LxWxH) 153mm nominal x 74mm nominal x 78mm nominal
Weight 660g nominal
