ELCAN Armament Technology

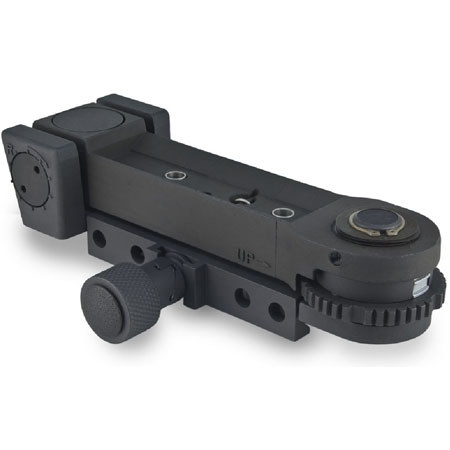

ELCAN Armament Technology Torque Knob Optical Sight Mount, Only

SKU: ATELC145MT MFR: ELC145MT
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$753.00 List Price

Our Price

$499.95 $20 per week
Qty:
Add to Wishlist In Stock

About this item

ELCAN mounting assemblies are commercially available to O.E.M. producers of optical and electro-optical sighting systems or wherever a mil-spec attachment and zeroing mechanism is required. All ELCAN Mount assemblies attach directly to MIL-STD-1913 rails or receivers. The mount incorporates generous elevation and azimuth adjustment and is produced in ballistic calibrations for 5.56 NATO, 7.62 NATO and .50 BMG. Custom ballistic compensation is available for special production runs. mount assemblies, when installed on a weapon sight are designed to withstand a drop of 1.5m onto concrete while attached to an 8kg weapon.

Technical Specs

Base Requirement MIL-STD-1913 "Picatinny Rail"
Base attachment Clamping foot with metal wing nuts
Windage and Elevation 0.25 mil detent zeroing adjustments
Elevation adjustment range 50 mils
Windage adjustment range 45 mils
Ballistic Compensation 5.56 NATO 62gr FMJ: 200-800m, 100m increments; 7.62 NATO 147gr FMJ: 200-800m, 100m increments; .50BMG S.L.A.P. 500-1900m, 200m increments
Surface Finish Gray/black hard anodized
Instrument attachment 120 deg. V-block with two M5x0.8mm pitch hold-down capscrews, 38mm spacing on long-axis centerline
Durability Designed to withstand a drop of 1.5m onto concrete while attached to an 8kg weapon
Dimensions 1.9 x 1.4 x 5.2in / 49 x 35 x 131mm
Weight 10.6oz / 300g
Applications OEM Optical, Night Vision and Laser
ELCAN sighting system spares
