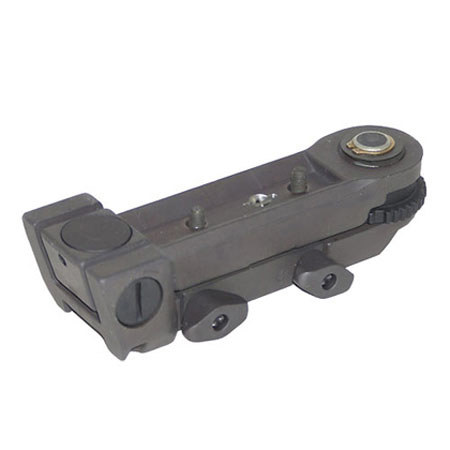

ELCAN Armament Technology Gen-4-SSL Optical Sight Mount (.223) Only
Your card will only be charged once item ships.
Ways to Save
ELCAN mounting assemblies are commercially available to O.E.M. producers of optical and electro-optical sighting systems or wherever a mil-spec attachment and zeroing mechanism is required. All ELCAN Mount assemblies attach directly to MIL-STD-1913 rails or receivers. The mount incorporates generous elevation and azimuth adjustment and is produced in ballistic calibrations for 5.56 NATO, 7.62 NATO and .50 BMG. Custom ballistic compensation is available for special production runs. Mount assemblies, when installed on a weapon sight are designed to withstand a drop of 1.5 meters onto concrete while attached to an 8kg weapon.
|Base Requirement||MIL-STD-1913 "Picatinny Rail"|
|Base attachment||Clamping foot with metal wing nuts|
|Windage and Elevation||0.25 mil detent zeroing adjustments|
|Elevation adjustment range||50 mils|
|Windage adjustment range||45 mils|
|Ballistic Compensation||5.56 NATO 62gr FMJ: 200-800m, 100m increments, 7.62 NATO 147gr FMJ: 200-800m, 100m increments|
|Dimensions (W x H x L)||3.25 x 2.25 x 6.75in / 8.3 x 5.7 x 17.1cm|
|Weight||10.9oz / 310g|
|Applications||OEM Optical, Night Vision and Laser
