ELCAN Armament Technology M145 3.45x Optical Sight, M4 Carbine Reticle, 5.56 NATO Wingnut Mount

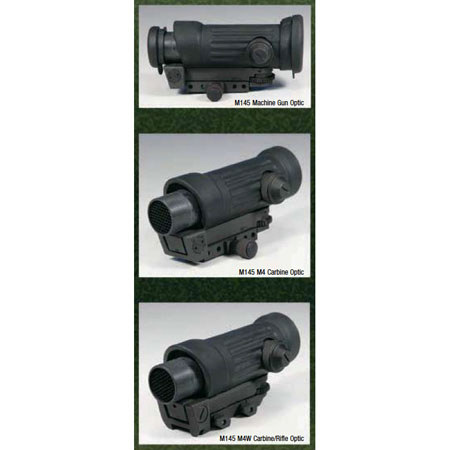

The Elcan SpecterM145 Optical Sight combines Elcan's legendary robustness and optical brilliance with a ballistically calibrated LED-illuminated ranging reticle. It is designed for application to Machine Guns, M4 Carbines, M16/AR15 and AR10 rifles and has been proven to withstand the rigors of modern combat.
The sight may be mounted to any MIL-STD-1913 receiver or base in seconds and will retain zero when removed and re-attached to the weapon. Optional versions include mounts incorporating ballistic compensation in addition to that provided by the reticle. The M145M4W is built to stringent specifications and is designed for extreme-duty applications where only the most rugged equipment will suffice.
|Field of View||8 degrees nominal (14.1m @ 100m)|
|Entrance Pupil Diameter||28mm|
|Exit Pupil Diameter||8.5mm|
|Laser Protection||Available for Military production|
|Anti-Reflection Device||Standard, removable|
|Mount||Fits MIL-STD-1913 "Picatinny Rail"|
|Reticle Illumination||LED illumination of reticle center|
|Environmental||Waterproof to 20 meters|
|Ballistic Compensation||M4 Carbine ballistic compensation in the reticle and 5.56 NATO Rifle ballistic compensation in the mount|
|Power Source||DL1/3N 3V long life lithium battery|
|Size (mm)||182(L) X 78(W) x 92(H)|
