Atlona Technologies

Atlona Technologies HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver, 10.2Gbps Bandwidth, 230' at 1080p Over CAT6a/7 Distance

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

$179.99 $8 per week
Free Shipping
Add to Wishlist

About the Atlona Technologies CAT5e/6/7

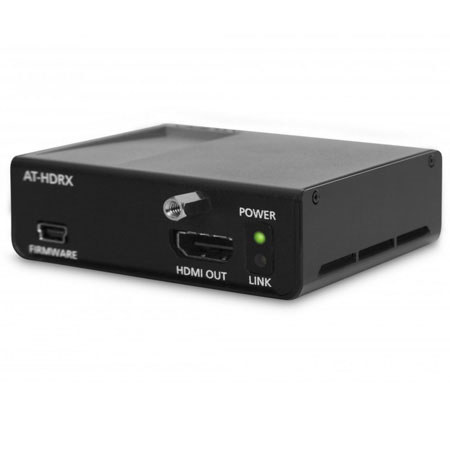

The Atlona HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver provides your high-definition display systems with Full HD 1080p video feeds via an HDMI connection. This unit is capable of receiving signals from a compatible transmitter (sold separately) for a distance of up to 230' (70.1m). It provides pass-through support for 1080p and 1920 x 1200 video signals, as well as lossy and lossless audio signals.

Atlona Technologies CAT5e/6/7 Includes

  • Atlona HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver
  • Pair of Wall/Rack Mount Ears
  • User Manual
  • Atlona 10 Years Limited Warranty

Atlona Technologies CAT5e/6/7 Features

  • Allows you to combine audio, video and power in a single CAT5e/6/7 cable
  • PoCc (Power over Category cable) enables reception of power from a compatible transmitter; simply connect your receiver to a compatible transmitter to power on
  • Using the correct CAT cable and a compatible transmitter, the HDRX can receive signals for a distance up to 230' (70m)
  • Pass-through support of all 3D formats
  • DTS-HD Master Audio and Dolby TrueHD audio pass-through
  • Small form factor and single line feature allow you to mount the HDRX behind a TV or rack for a clean and clutter-free setup
  • Locking HDMI port
  • Field serviceable firmware port
  • Pass-through support for 1080p and 1920 x 1200 video signals and lossy and lossless audio signals

Atlona Technologies CAT5e/6/7 Specifications

Bandwidth 10.2Gbps
Video Video: up to 4Kx2K
VESA: up to 1920x1200
Audio Passes through up to Dolby TrueHD
or DTS-HD Master Audio
Distance 230ft at 1080p over CAT6a/7
197ft at 1080p over CAT5e/6
130ft at 4Kx2K
Wall Mountable Yes
Power Consumption 9.1W
Certifications CE, FCC, RoHS, cULus for power supplies
Operating Temperature 32deg.F to 104deg.F / 0deg.C to 40deg.C
Storage Temperature -4deg.F to 140deg.F / -20deg.C to 60deg.C
HDCP Compliant Yes
Dimensions (H x W x D) 0.95 x 2.87 x 2.72" / 2.41 x 7.28 x 6.90cm
Weight 0.25 lbs / 0.11 kg
