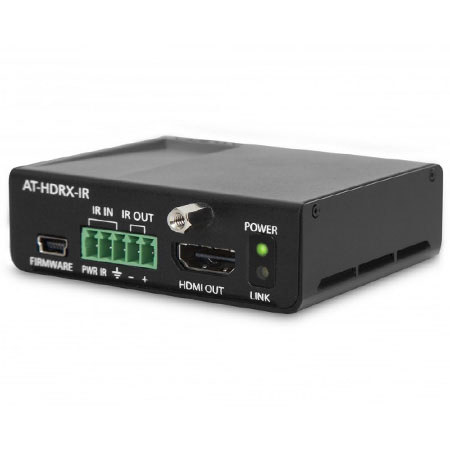

Atlona Technologies HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver with IR, 10.2 Gb/s Bandwidth, 230' at 1080p over CAT6a/7 Distance

Atlona Technologies
SKU: ATHDRXIR MFR: AT-HDRX-IR
Atlona Technologies CAT5e/6/7: Picture 1 thumbnail Atlona Technologies CAT5e/6/7: Picture 2 thumbnail Atlona Technologies CAT5e/6/7: Picture 3 thumbnail

About Atlona Technologies CAT5e/6/7

The Atlona HDBaseT-Lite HDMI over Single CAT5e/6/7 Receiver with IR provides your high-definition display systems with full HD 1080p video feeds via an HDMI connection. PoCc (Power over Category cable) eliminates the need for a power supply and offers the best possible combination of connectivity features.

Atlona Technologies CAT5e/6/7 Features

  • Receives signals at a distance of up to 230' (70m)
  • PoCc (Power over Category Cable) eliminates the need for a power supply at the receiver
  • Bi-directional IR for third-party-controller compatibility
  • Convenient captive-screw terminations for power and control help reduce wire bundles for cleaner racks and more reliable connections
  • Supports all embedded audio signals including Dolby TrueHD and DTS-HD Master Audio
  • Locking HDMI ports
  • Resolutions up to UltraHD (4 x 2K)
  • CEC pass-through
  • USB port means firmware can be upgraded in the field to save time and money

Atlona Technologies CAT5e/6/7 Specifications

Bandwidth
10.2Gbps
Ports
1 x RJ45
Video
Video: up to 4Kx2K
VESA: up to 1920x1200
Audio
Passes through up to Dolby TrueHD
or DTS-HD Master Audio
Distance
230ft at 1080p over CAT6a/7
197ft at 1080p over CAT5e/6
130ft at 4Kx2K
Wall Mountable
Yes
Power Consumption
9.1W
Certifications
CE, FCC, RoHS, cULus for power supplies
Operating Temperature
32deg.F to 104deg.F / 0deg.C to 40deg.C
Storage Temperature
-4deg.F to 140deg.F / -20deg.C to 60deg.C
HDCP Compliant
Yes
Dimensions (H x W x D)
0.95 x 2.87 x 2.72" / 2.41 x 7.28 x 6.90cm
Weight
0.25 lbs / 0.11 kg
