Atlona Technologies

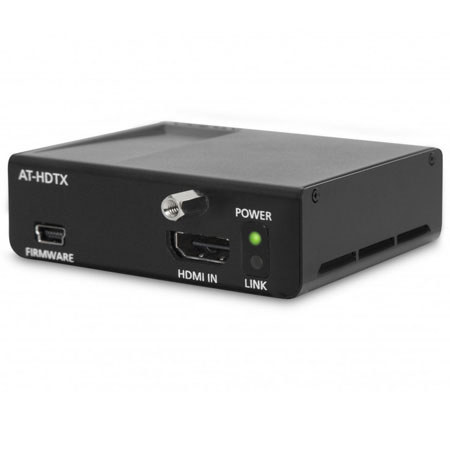

Atlona Technologies HDBaseT HDMI Over Single CAT5e/6/7 Transmitter, 10.2Gbps Bandwidth

SKU: ATHDTX MFR: AT-HDTX
Special Order Item - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$179.99 $8 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The Atlona HDBaseT HDMI Over Single CAT5e/6/7 Transmitter uses the advanced technology of HDBaseT combined with power over category cable (PoCc) to affordably extend signals to 230' (70 m) over a single category cable. Atlona's HDBaseT transmitter box is ideal for displays on a budget in hospitality, entertainment or education, when controls aren't needed.

What's Included With This Item

  • Atlona HDBaseT HDMI Over Single CAT5e/6/7 Transmitter
  • Captive Screw Connector
  • User Manual
  • 24V/2.7A DC Power Supply
  • Pair of Wall/Rack Mount Ears
  • Atlona 10 Years Limited Warranty

Key Features

  • HDBaseT at the Right Point: Atlona transmitters use advanced HDBaseT technology to extend signals farther on a budget, with maximum distances as far as 230 feet (70 meters)
  • Easier to Install and Update: Power outlets are only needed at the transmitter, so no other power is needed at the receiver. Upgrade in the field via USB port
  • Higher Resolutions at Longer Distances: With TX boxes you get resolutions up to Ultra HD (4Kx2K) as far away as 130 feet (40 meters), the longest of the value transmitters that meet HDBaseT specifications
  • Captive-screw termination for power help reduce wire bundles
  • Locking HDMI ports for more reliable connections
  • Transmits all embedded audio signals including Dolby TrueHD and DTS-HD Master Audio
  • Support for resolutions up to UltraHD (4Kx2K)
  • PoCc eliminates the need for a power supply at the receiver
  • Compatible with Atlona HDRX receivers
  • High EMI rejection for compatibility in even the most challenging installations

Technical Specs

Bandwidth 10.2Gbps
Video Video: up to 4Kx2K
VESA: up to 1920x1200
Audio Passes through up to Dolby TrueHD or DTS-HD Master Audio
Distance 230ft at 1080p over CAT6a/7
197ft at 1080p over CAT5e/6
130ft at 4Kx2K
Power Consumption 9.1W
Wall Mountable Yes
Certifications CE, FCC, RoHS, cULus for power supplies
Operating Temperature 32deg.F to 104deg.F / 0deg.C to 40deg.C
Storage Temperature -4deg.F to 140deg.F / -20deg.C to 60deg.C
HDCP Compliant Yes
Dimensions 0.95 x 2.87 x 2.72" / 2.4 x 7.28 x 6.90cm
Weight 0.25 lbs / 0.11 kg
