Item Includes

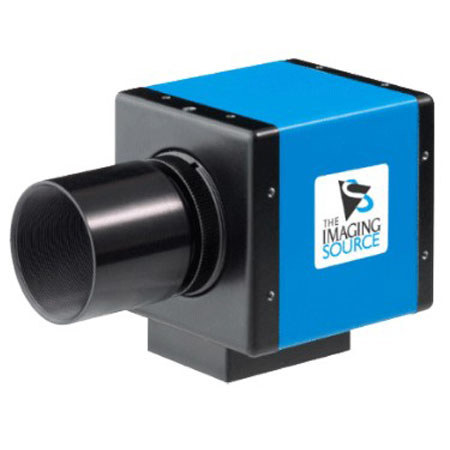

The Imaging Source FireWire Color Telescope Camera - Device Driver (IC WDM DCAM TIS) - Camera Control Software IC Capture.AS
|
Description
With up to 60 fps, this astro CCD camera is ideally suited to color astrophotography, in which very fast sequences of images are captured. Using the shipped software - IC Capture.AS - you can capture lossless and uncompressed images sequences as AVI files. The telescope camera DFK 21AF04.AS generates a fast stream of uncompressed color images. In order to transfer these to the host PC, a very fast bus is required. Hence, the camera is fitted with a FireWire connector.
IC Capture.AS performs color interpolation on the raw color data (RAW format) from the CCD chip. This reduces the load on the camera processor. Should, on the other hand, the camera be installed on a host PC in which the CPU is not particularly fast, color interpolation can be performed by the camera itself. In this case, the maximum refresh rate is 30 fps. Alternatively, should color interpolation not be desirable at all, AVI files can be written in RAW format.
The telescope camera DFK 21AF04.AS uses a modern color CCD chip (ICX098BQ, progressive scan, manufactured by Sony). It outputs a resolution of 640 x 480 pixel at a 1/4" format. Even at long exposure times, its noise is minimal. The high quality of the CCD chip also permits its deployment in scientific image processing applications. The CCD camera DFK 21AF04.AS is equipped with an IR cut filter that blocks wavelengths above 700nm. Thus, its properties are similar to those of the human eye. |
Features
 |
Camera Features: |
|
Color FireWire camera with IR cut filter |
|
1/4" CCD, progressive scan |
|
Resolution 640 x 480 |
|
Up to 60 color frame per second |
|
Max exposure time 60 min |
|
C/CS Mount |
|
Fast display of color images |
|
Sony color CCD |
|
Fast data transfer via FireWire |
|
Sony ICX098BQ Sensor Features: |
|
Progressive scan allows individual readout of the image signals from all pixels. |
|
High horizontal and vertical resolution (both approx. 400TV-lines) still image without a mechanical shutter. |
|
Supports monitoring mode |
|
Square pixel |
|
Supports VGA format |
|
Horizontal drive frequency: 12.27 MHz |
|
No voltage adjustments (reset gate and substrate bias are not adjusted.) |
|
R, G, B primary color mosaic filters on chip |
|
High resolution, high color reproductivity, high sensitivity, low dark current |
|
Continuous variable-speed shutter |
|
Low smear |
|
Excellent anti-blooming characteristics |
|
Horizontal register: 3.3V drive |
|
14-pin high precision plastic package (enables dual-surface standard) |
Specifications
| Camera Type | Color FireWire camera with IR cut filter |
| Purpose | Astronomy FireWire CCD Imager for Telescope Astrophotography |
| Connection | FireWire |
| Sensor | CCD |
| Sensor Type | Progressive scan |
| Format | 1/4" |
| Resolution | 640 x 480 pixel |
| Dynamic Range | 8 bit |
| Exposure Time | 1/10000 s to 60 minutes |
| Gain | 0 dB to 36 dB |
| Fps @ Max Resolution | 60 fps |
| Video Formats @ Frame Rate | 640 x 480, BY8 (RAW) @ 60, 30, 15, 7.5, 3.75 fps
640 x 480, UYVY @ 30, 15, 7.5, 3.75 fps |
| Lens Mount | C/CS-mount |
| Sensor Image Size | Diagonal 4.5mm (Type 1/4) |
| Sensor Number Of Effective Pixels | 659 (H) x 494 (V) approx. 330K pixels |
| Sensor Total Number Of Pixels | 692 (H) x 504 (V) approx. 350K pixels |
| Sensor Chip Size | 4.60mm (H) x 3.97mm (V) |
| Sensor Unit Cell Size | 5.6µm (H) x 5.6µm (V) |
| Sensor Optical Black | Horizontal (H) direction: Front 2 pixels, rear 31 pixels
Vertical (V) direction: Front 8 pixels, rear 2 pixels |
| Sensor Number Of Dummy Bits | Horizontal 16
Vertical 5 |
| Sensor Substrate Material | Silicon |
| Supply Voltage | 8 V to 30 V via the FireWire cable |
| Current Consumption | Approx 200 mA @ 12 VDC |
| Max. Temperature (Operation) | -5 °C to 45 °C |
| Max. Temperature (Storage) | -20 °C to 60 °C |
| Max. Humidity (Operation) | 20 % to 80 % |
| Max. Humidity (Storage) | 20 % to 95 % |
| Dimensions (H x W x L) | 50.6 mm x 50.6 mm x 50 mm |
| Mass | 265 g |
| | |
|
