LVI

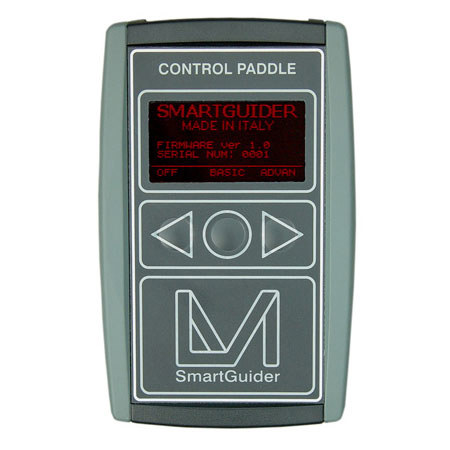

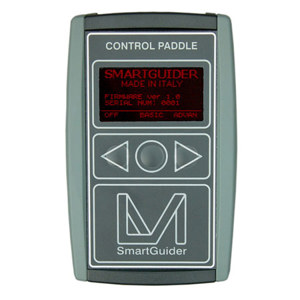

LVI SmartGuider 2 Image Control System with Special MGA Device, Advanced Reflex Control

SKU: ATLVISG2 MFR: ATLVISG2
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Special Price

$399.95

Regular Price $539.95

Qty:

Add to Wishlist

About this item

The LVI SmartGuider 2 Imaging Control System goes beyond the simple concept of autoguiding. Astrophotographers know well that autoguiding is vital for obtaining clear and crisp long-exposure photos with pinpoint star resolution, but that's not all. Final images are the result of a complex process handled by different devices which must all work together flawlessly in order to get the desired photo quality. But in most of cases, the process isn't flawless.

The LVI SmartGuider 2 Imaging Control System is an integrated solution which does the whole process required to make wonderful astrophotos in a very short time and in a fun and easy way! No longer do you need the laptop, the reflex remote switch, the focuser control and the other gadgets in the field: the elusive beauty of the Universe will now just be a few clicks away from your dreams! The LVI SmartGuider 2 Imaging Control System comes with the special MGA device which takes the full control of your imaging equipment (mount, DSLR and focuser) to deliver the best result out of your telescope.

Key Features

  • Automatic star search function
  • Noise Threshold adjustable to avoid Hot Pixel
  • Real time with focus and position with guide star on the 2.5" LCD screen
  • Automatic axes calibration with permanent saving
  • Screen backlight and beep sound adjustable
  • Dithering for star displacement.
  • Aggressiveness and Pulse Duration adjustable
  • Sub-pixel 2X autoguiding (to allow the usage of short guidescopes)
  • Reflex and Focuser Advanced Control

Technical Specs

Image sensor Mono 1/3" Aptina MT9V032
Sensor format 752x480 pixel, 6 square micron
Active area 4.51 x 2.88mm (5.35mm diagonal)
Exposure AUTO, 0.001 - 4 seconds
Max Exposure MAN, 1 - 4 seconds
Telescope interface 1.25" barrel with filter thread
Guiding Camera Dimensions and weight DxH=65x50mm, Weight=110g
Limiting magnitude star Up to Mv=9 with 80mm aperture
Housing ABS black color
Keyboard Membrane, with 3 backlighted buttons
Display Graphical 2.5" LCD, 128x64 pixel, backlighted
Control Paddle Dimensions and weight LxHxW: 55x96x28mm, Weight: 220g
Power supply 6-14V DC, 90-120 mA
Output connectors REFLEX, FOCUSER, ST4, AUTOSTAR, GUIDING CAMERA
Battery holder 3xAA batteries for Focuser section only
MGA Unit Dimensions and weight LxWxH=118x102x33mm, Weight=125g
