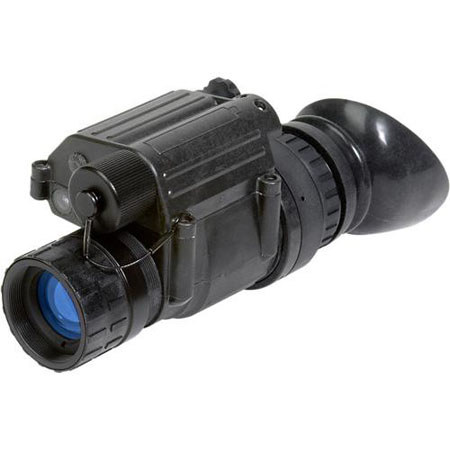

ATN 6015-3P 3rd Gen Night Vision Monocular, 64-72 lp/mm Resolution, 1x Magnification, 26mm Focal Length, f/1.2 Lens

SKU: ATN60153P MFR: NVMP60153P
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,599.00 List Price

Our Price

$3,499.00
Free Shipping
Qty:

Add to Wishlist

About this item

The ATN 6015-3P is a high performance 3rd generation night vision monocular goggle. This rugged and versatile NVD can easily be adapted for hands-free viewing with the included head or optional helmet mount. When co-aligned with a red-dot type sight on a Picatinny rail the 6015-3P becomes an integral part of a formidable night vision weapons sighting system.

This is a true multi-tasking monocular that's built to endure the rigors of combat. The housing is totally sealed & waterproof for fog-free viewing and protection against the elements. Extremely fast multi coated optics deliver a clear and detailed image, even under difficult lighting conditions. Low or no-light conditions are easily handled with a flip of a switch. This version of the 6015 monocular is configured with a state-of-the-art 3rd generation 'Pinnacle' intensifier from ITT - this premium intensifier provides 64-72 lp/mm of resolution.

What's Included With This Item

  • ATN 6015-3P Gen 3rd Night Vision Monocular
  • Lens Tissue
  • Soft Carrying Case
  • Neck Cord
  • Lens Cap
  • 1.5 Volt AA Battery
  • Demist Shield
  • Head Mount Assembly
  • Sacrificial Filter
  • Instruction Manual
  • ATN 2 Years Limited Warranty

Key Features

  • Multitasking: Head, helmet and weapon mountable
  • Waterproof Housing: Submersible, 3.3' / 1.0m for 30 minutes
  • 3rd Generation 'Pinnacle' Intensifier Tube: Resolution: 64-72 lp/mm. ITT's "Pinnacle" third generation night vision intensifier tube lives up to its name by being the best there is in the world of image intensifiers
  • Pinnacle tubes feature a thin-film ion barrier on the MCP and a gallium-arsenide coated photocathode
  • The power supply was reconfigured with an auto-gating circuit that significantly enhances the tube's response to dynamic lighting conditions
  • Compared to standard third generation technology, Pinnacle tubes deliver 22% higher photo response 24% improvement in S/N ratio, a significant reduction in halo diameter, 20% greater range of vision at night, 10,000+ hours of tube life
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Technical Specs

Total Darkness IR System Yes
Multi-Purpose System Yes
IIT Generation 3
Photocathode Type Thin-Filmed/Auto-Gated
Resolution 64-72 lp/mm
Signal to Noise Ratio 24 Typical
Figure of Merit 1800 Typical
Photocathode Sensitivity 2000-2800
Magnification 1x
Lens System F1.2, 26mm
Proshield Lens Coating Yes
FOV 40deg.
Range of Focus 0.25m to infinity
Diopter Adjustment -5 to +2
Controls Digital
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes
Low Battery Indicator Yes
Power Supply (1) 1.5 Volt AA size
Battery Life 50 hrs
Environmental Rating Waterproof
Operating Temperature -40 to +50deg.C
Storage Temperature -50 to +70deg.C
Dimensions 4.50x2.20x2.00" (11.43x5.58x5.08)
Weight 0.68lbs (0.30kg)
