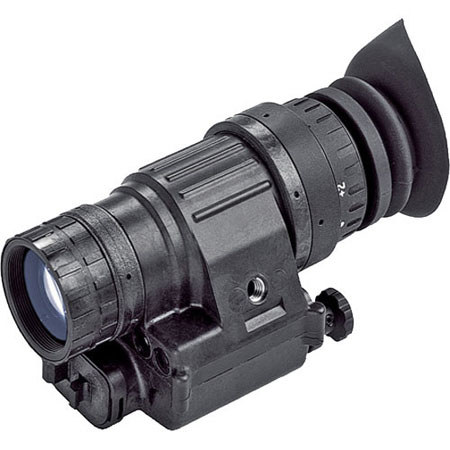

ATN 6015-4 4th Gen Night Vision Monocular, 64-72 lp/mm Resolution, 1x Magnification, 26mm Focal Length, f/1.2 Lens

SKU: ATN60154 MFR: NVMP601540
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$5,599.00 List Price

Our Price

Free Expedited Shipping
Add to Wishlist

About this item

The ATN 6015-4 is a high performance fourth generation night vision monocular goggle. This rugged and versatile NVD can easily be adapted for hands-free viewing with the included head or optional helmet mount. When co-aligned with a red-dot type sight on a Picatinny rail the 6015-4 becomes an integral part of a formidable night vision weapons sighting system.

This is a true multi-tasking monocular that's built to endure the rigors of combat. The housing is totally sealed & waterproof for fog-free viewing and protection against the elements. Extremely fast multi coated optics deliver a clear and detailed image, even under difficult lighting conditions. Low or no-light conditions are easily handled with a flip of a switch. The 4th generation intensifier is capable of turning night into day with a quite notable & respectable 64-72 lp/mm of resolution. Fourth generation intensifiers feature a filmless cathode and an auto-gated power supply for superb performance under dynamic lighting conditions.

What's Included With This Item

  • ATN 6015-4 Gen 4th Night Vision Monocular
  • Lens Tissue
  • Soft Carrying Case
  • Neck Cord
  • Lens Cap
  • 1.5 Volt AA Battery
  • Demist Shield
  • Head Mount Assembly
  • Sacrificial Filter
  • Instruction Manual
  • ATN 2 Years Limited Warranty

Key Features

  • +2/-6 Dioptric adjustment
  • Head, helmet and weapon mountable
  • 20-50 hours run-time on two 1.5-volt "AA" batteries
  • Waterproof Housing: Submersible, 3.3'/1.0m for 30 minutes
  • Fourth Generation Intensifier Tube: Fourth generation intensifier tube delivers 64-72 lp/mm of resolution
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Technical Specs

Total Darkness IR System Yes
Multi-Purpose System Yes
IIT Generation 4
Photocathode Type Filmless GaAs
Resolution 64-72 lp/mm
Signal to Noise Ratio 25-30
Figure of Merit 2000 Typical
MTTF - Mean Time Before Failure 10,000 hours
Magnification 1x
Lens System F1.2, 26mm
Proshield Lens Coating Yes
FOV 40deg.
Range of Focus 0.25m to infinity
Diopter Adjustment -5 to +2
Controls Digital
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes
Low Battery Indicator Yes
Power Supply (1) 1.5 Volt AA size
Battery Life 50 hrs
Environmental Rating Waterproof
Operating Temperature -40 to +50deg.C
Storage Temperature -50 to +70deg.C
Dimensions 4.50x2.20x2.00" (11.43x5.58x5.08)
Weight 0.68lbs (0.30kg)
