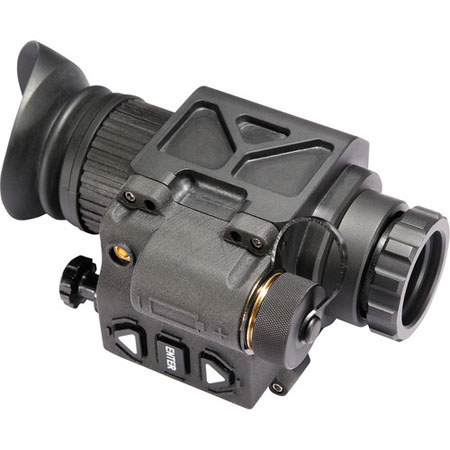

ATN OTS-X-E314 1x Thermal Imaging Viewer, 14mm Lens, 60Hz Frame Rate, 320x240 Sensor

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$4,495.00 List Price

Our Price

Free Expedited Shipping
Add to Wishlist

About the ATN OTS-X-E314

The ATN OTS-X-E314 1x Thermal Imaging Viewer is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. The OTS-X is one of the most affordable thermal viewers on the market that includes a full 320x240. One of the most unique features is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.

ATN OTS-X-E314 Includes

  • ATN OTS-X-E314 1x Thermal Imaging Viewer
  • Instruction Manual
  • Lens Tissue
  • Lithium Battery
  • Lens Cap
  • ATN 1 Year Warranty

ATN OTS-X-E314 Features

  • Ergonomic Design
  • Enhanced Imaging (60hz)
  • Compact Rugged Construction
  • Interchangeable Optics
  • E-Zoom
  • Variable Geometry Display
  • Digital Brightness Control
  • Icon Based Menu System
  • Color Modes
  • Black/White Polarity
  • VOx Vanadium Oxide Detector
  • 800x600 Display
  • Video Output
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN OTS-X-E314 Specifications

Sensor (microbolometer) 320 x 240
Type Uncooled
Material Vanadium oxide (VOx)
Image Size (output resolution) 800x600
Frame rate 60 Hz
Video output Analog RS-170
Lens 14mm
Display Color OLED matrix, SVGA< 800x600
Thermal Sensitivity <50mK
Spectral Response 7-14 um
Field of View 25deg.
Eye Relief 27mm
Diopter Adjustment -1.5
Optical Magnification 1x
E-Zoom 2x, 4x
Human Detection 500m
Human Recognition 225m
Human Identification 135m
Vehicle Detection 1100m
Vehicle Recognition 495m
Vehicle Identification 300m
Polarity control White hot / Black hot / Multiple Color Modes
Start up time <4 sec
Waterproof Yes
Battery type 1 x CR123A battery type
Battery Life 2+ hrs
Dimensions 100x61x83mm / 3.93x2.40x3.26"
Weight 0.83lbs / 0.37kg
