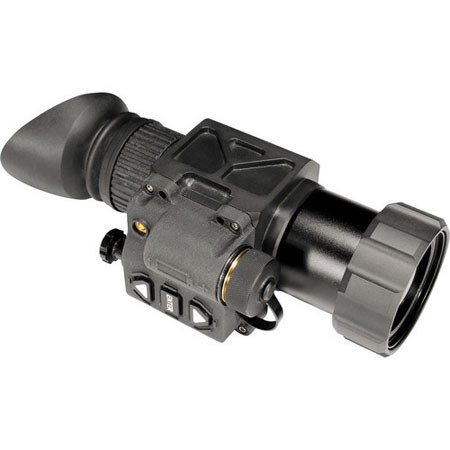

ATN OTS-X-E350 4x Thermal Imaging Viewer, 50mm Lens, 60Hz Frame Rate, 320 x 240 Sensor

ATN
SKU: ATNOTSXE350 MFR: TIMNOTSXE350
Made in USA

Our Price

$5,295.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About ATN OTS-X-E350

The ATN OTS-X-E350 4x Thermal Imaging Viewer is designed to be a versatile, compact, lightweight yet rugged thermal viewer that can be easily carried in a cargo pocket for Law enforcement and Sportsmen alike. The OTS-X is one of the most affordable thermal viewers on the market that includes a full 320x240. One of the most unique features is the ability to interchange the objective lens so you can have multiple magnifications based on your need or mission.

ATN OTS-X-E350 Features

  • Ergonomic Design
  • Enhanced Imaging (60hz)
  • Compact Rugged Construction
  • Interchangeable Optics
  • E-Zoom
  • Variable Geometry Display
  • Digital Brightness Control
  • Icon Based Menu System
  • Color Modes
  • Black/White Polarity
  • VOx Vanadium Oxide Detector
  • 800x600 Display
  • Video Output
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN OTS-X-E350 Specifications

Sensor (microbolometer)
320 x 240
Type
Uncooled
Material
Vanadium oxide (VOx)
Image Size (output resolution)
800x600
Frame rate
60 Hz
Video output
Analog RS-170
Lens
50 mm
Display
Color OLED matrix, SVGA< 800x600
Thermal Sensitivity
<50mK
Spectral Response
7-14 um
Field of View
7deg.
Eye Relief
27mm
Diopter Adjustment
-1.5
Optical Magnification
4x
E-Zoom
8x, 16x
Human Detection
1300
Human Recognition
500
Human Identification
320
Vehicle Detection
2800
Vehicle Recognition
1100
Vehicle Identification
700
Polarity control
White hot / Black hot / Multiple Color Modes
Start up time
<4 sec
Waterproof
Yes
Battery type
1 x CR123A battery type
Battery Life
2+ hrs
Dimensions
165x61x83 mm /6.5x2.4x3.26"
Weight
1.4lbs / 0.63kg
