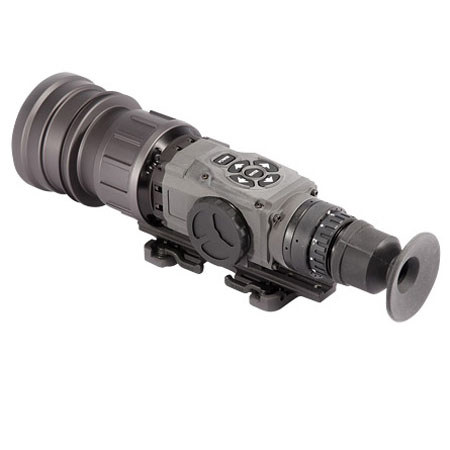

ATN ThOR-320: Picture 1 regular $8,999.00

About ATN ThOR-320

The ATN ThOR-320 6x Thermal Weapon Sight is lightweight and small enough to fit in the palm of your hand, yet it's rugged and durable. The entire system is built in the USA, utilizing Mil-Spec Lenses that make the ThOR battle worthy for most any mission, operation, or outdoor activity. Each system features a digital menu that gives you a variety of options and adjustments allowing you to customize your system. You can select a number of reticle options as well as choose a reticle color best suited for your specific application. No more black reticles on a black and white screen - ThOR features a color OLED display giving you a sharp color reticle every time. Or switch to full color mode and overlay it with either a black, red, blue, white or black reticle depending on the conditions and the environment.

The ThOR has no screws or springs that can create targeting errors. With all digital controls, the ThOR will never allow your reticle to move off base. The new ThOR Thermal Weapon Scope provides amazing image quality through total darkness, fog, or smoke. Darkness, camouflage or bright lights will not affect the sensitivity of these units. All units have feature E-Zoom to expand your optical magnification. They're Ideal for nighttime hunting, force protection, border patrol, police SWAT and special operations. And they feature a video-out connection and cable which will let you capture your nighttime operation on video.

ATN ThOR-320 Features

  • Compact & lightweight design
  • Digital imaging
  • Fast Imaging (30hz)
  • 800 x 600 OLE D color display
  • Rugged design with mil. spec optics
  • Menu functions include reticle type & color selection; windage & elevation adjustment
  • Digital brightness control
  • Vanadium oxide (VOx) Microbolometer Uncooled
  • Polarity single button modes: black on white, white on black, 5 different color settings
  • E-zoom
  • 5 different reticles with choice of reticle color: red, green, blue, black, or white
  • Reticle will Automatically Adjust its position when using E-Zoom (Note: Most thermal scopes allow the user to use the scope for observation only, in E-Zoom due to the lack of this feature.)
  • Video output with RCA cable
  • Diopter range: +2deg. to -6deg
  • Eye relief: 28mm
  • MIL -STD-1913 (Picatinny Rail) Quick Release Mount
  • Up to 8 hours operation with three lithium batteries
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN ThOR-320 Specifications

Sensor (microbolometer)
Vanadium oxide (VOx)
Image Size (output resolution)
Frame rate
Video output
Yes, Digital NTSC / PAL
Color OLED matrix, SVGA< 800x600
Color background + color reticles
Thermal Sensitivity
Spectral Response
Focal length of the lens
Field of View (HxV)
4.5 x 3,5 deg.
Eye Relief
Optical Magnification
12x, 24x
Diameter of exit pupil
Distance of human detection (w/o zoom)
Distance of the human recognition
Multiple Reticles to Choose From
Reticle Color
Red, Green, Blue, White & Black
Brightness adjustment
Sharpness adjustment
Polarity control
White hot / Black hot / Multiple Color Modes
Start up time
<3 Sec
Waterproof / Dustproof
Battery type
3 x CR123A battery type
Battery Life, h
Mounting bracket
MIL-STD 1913 Picatinny (Quick)
Output computer set up
Low Battery Indicator
Quick access, Icon driven feature controls
Aircraft Aluminum 6061 T6 w/ class III hard anodized coating
Objective lens
Janus, full MIL SPEC, DLC (Diamond Like Carbon) coating
Dimensions (LxWxH) (without bracket)
262x94x73mm / 10.31x3.70x2.87"
1417g / 49.98oz
Mfr #
