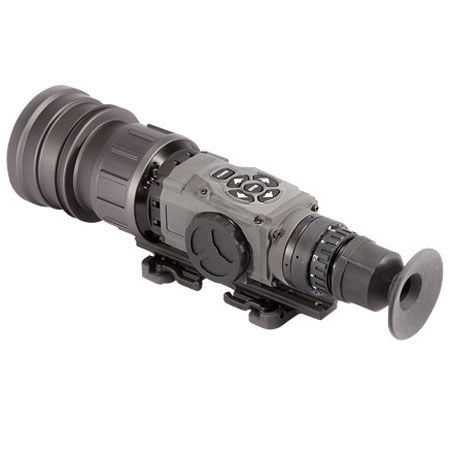

ATN ThOR-640 5X Thermal Weapon Sight, 30Hz Frame Rate, 100mm Focal Length of Lens, 640 x 480 Sensor

ATN
SKU: ATNWSMT645B MFR: TIWSMT645B
ATN ThOR-640: Picture 1 thumbnail ATN ThOR-640: Picture 2 thumbnail ATN ThOR-640: Picture 3 thumbnail ATN ThOR-640: Picture 4 thumbnail

About ATN ThOR-640

The ATN ThOR-640 5X Thermal Weapon Sight (30Hz) is lightweight and small enough to fit in the palm of your hand, yet it's rugged and durable. The entire system is built in the USA, utilizing Mil-Spec Lenses that make the ThOR battle worthy for most any mission, operation, or outdoor activity. Each system features a digital menu that gives you a variety of options and adjustments allowing you to customize your system. You can select a number of reticle options as well as choose a reticle color best suited for your specific application. No more black reticles on a black and white screen - ThOR features a color OLED display giving you a sharp color reticle every time. Or switch to full color mode and overlay it with either a black, red, blue, white or black reticle depending on the conditions and the environment.

The ThOR has no screws or springs that can create targeting errors. With all digital controls, the ThOR will NEVER allow your reticle to move off base. The new ThOR Thermal Weapon Scope provides amazing image quality through total darkness, fog, or smoke. Darkness, camouflage or bright lights will not affect the sensitivity of these units. All units have feature E-Zoom to expand your optical magnification. They're Ideal for nighttime hunting, force protection, border patrol, police SWAT and special operations. And they feature a video-out connection and cable which will let you capture your nighttime operation on video.

ATN ThOR-640 Features

  • Compact & lightweight design
  • Digital imaging
  • Fast Imaging (30hz)
  • 800 x 600 OLE D color display
  • Rugged design with mil. spec optics
  • Menu functions include reticle type & color selection; windage & elevation adjustment
  • Digital brightness control
  • Vanadium oxide (VOx) Microbolometer Uncooled
  • Polarity single button modes: black on white, white on black, 5 different color settings
  • E-zoom
  • 5 different reticles with choice of reticle color: red, green, blue, black, or white
  • Reticle will Automatically Adjust its position when using E-Zoom
  • Video output with RCA cable
  • Diopter range: +2deg. to -6deg
  • Eye relief: 28mm
  • MIL -STD-1913 (Picatinny Rail) Quick Release Mount
  • Up to 8 hours operation with three lithium batteries
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN ThOR-640 Specifications

Sensor (microbolometer)
640x480
Material
Vanadium oxide (VOx)
Image Size (output resolution)
800x600
Frame rate
30Hz
Video output
Yes, Digital NTSC / PAL
Display
Color OLED matrix, SVGA< 800x600
Color background + color reticules
Thermal Sensitivity
<50mK
Spectral Response
7-14µm
Focal length of the lens
100mm
Field of View (HxV)
6 x 4.7 deg.
Eye Relief
28mm
Optical Magnification
5X
E-Zoom
10x, 20x, 40x
Diameter of exit pupil
14mm
Distance of human detection (w/o zoom)
2500m
Distance of the human recognition
1100m
Reticle
Multiple Reticles to Choose From
Reticle Color
Red, Green, Blue, White & Black
Brightness adjustment
Manual
Sharpness adjustment
Automatic
Polarity control
White hot / Black hot / Multiple Color Modes
Start up time
<3 sec
Waterproof
Waterproof / Dustproof
Battery type
3 x CR123A battery type
Battery Life
8+ h
Mounting bracket
MIL-STD 1913 Picatinny (Quick)
Output computer set up
Yes
Low Battery Indicator
Yes
Iconology
Quick access, Icon driven feature controls
Housing
Aircraft Aluminum 6061 T6 w/ class III hard anodized coating
Objective lens
Janus, full MIL SPEC, DLC (Diamond Like Carbon) coating
Dimensions (LxWxH) (without bracket)
262x94x73mm / 10.31x3.70x2.87"
Weight
1417g/ 49.98oz
