About the ATN Odin-31DW

The ATN Odin-31DW 1x Waterproof Thermal Monocular features extremely small size and low weight because of its advanced construction and characteristics using the latest technologies in high grade polymers to make a Mil. Spec, system that is identical in size, weight and shape to a AN/PVS-14. The Odin-31DW is a multi-purpose system using the latest in miniature thermal sensor technology combined with the new OLED Display to provide a superior stable image in the smallest package available. The system also includes an array of features that help the user to enhance the sight to meet all of their requirements. The Odin-31C is one of the most capable thermal monocular systems on the market and comes with a very affordable price point.

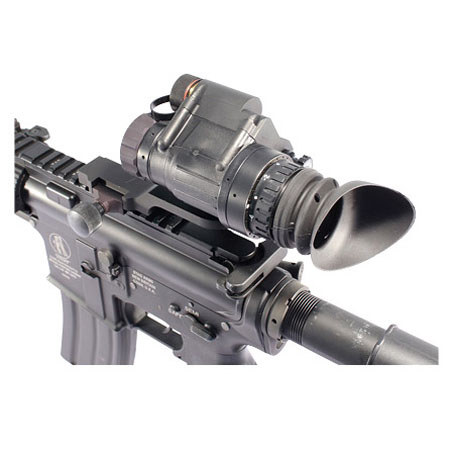

The Odin-31DW 1x system is designed for hand held, head mounts and weapon mounted operations. It is designed to use the same accessories as the AN/PVS-14 Night Vision Monocular System. The Odin-31DW has many options available for head mounting. The easiest is the easy to use J-Arm bracket and a standard head strap. The Odin-31DW has the ability to be rail mounted to a light caliber weapon such as a M16 or M4 using the accessory weapon rail interface adapter. An optional digital reticle aiming system is also available for the Odin-31DW. With the ability to use most accessories for the AN/PVS-14 the Odin-31DW is user friendly and easy to learn to use. The system design has been proven effective and reliable as well as functional. The Odin-31DW is a perfect compliment to any user of night vision monocular systems.

ATN Odin-31DW Includes

  • ATN Odin-31DW 1x Waterproof Thermal Monocular
  • Instruction Manual
  • Lens Tissue
  • Lithium Battery
  • Lens Cap
  • Demist Shield
  • Weapons Mount
  • J-Arm Head Mount Adapter with Head Strap
  • Hard Case
  • ATN 1 Year Limited Warranty

ATN Odin-31DW Features

  • Ergonomic Design
  • Compact and Lightweight
  • PVS-14 Construction
  • Mil. Spec Optics
  • Head Mountable
  • Weapon Interface
  • Variable Geometry Display
  • E-Zoom
  • Digital Brightness Control
  • Icon Based Menu System
  • Color Modes
  • Black/White Polarity/ Multiple Color Modes
  • VOx Vanadium Oxide Detector
  • 800x600 OLED Display
  • Video Output
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

ATN Odin-31DW Specifications

Sensor (microbolometer) 320 x 240
Type Uncooled
Material Vanadium oxide (VOx)
Image Size (output resolution) 800x600
Frame rate 60Hz
Video output Analog RS-170
Lens 17mm
Display Color OLED matrix, SVGA< 800x600
Thermal Sensitivity <50mK
Spectral Response 7-14 um
Field of View 24deg.x18deg.
Eye Relief 27mm
Diopter Adjustment -6 to +4
Optical Magnification 1x
E-Zoom 2x, 4x
Human Detection 500m
Human Recognition 225m
Human Identification 135m
Vehicle Detection 1100m
Vehicle Recognition 495m
Vehicle Identification 300m
Reticle Multiple Reticles to Choose From
Polarity control White hot / Black hot / Multiple Color Modes
Start up time <4 sec
Waterproof Waterproof / Dustproof
Battery type 1 x CR123A battery type
Battery Life 2+ hrs
Dimensions 3.4x2.2x1.95" / 8.63x5.58x4.95cm
Weight 0.77lbs / 0.34kg
