7.1"
1920 x 1200
320
16:9 native
REC709 HDTV
3D LUT (.cube file format)
SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder
1x HDMI (1.4b)
1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE)
Uncompressed true 10-bit or 8-bit 422 (camera dependent)
1x HDMI (1.4b)
1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE)
Uncompressed true 10-bit or 8-bit 422 (playback file dependent)
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120, 2160p 24/25/30
720p 50/60, 1080i 50/60
1080pSF 24/25/30
1080p 24/25/30/50/60/120, 2160p 24/25/30
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120, 2160p 24/25/30
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120, 2160p 24/25/30
4K: 2160p 24/25/30
HD - high frame rate: 1080p120, 1080p60/50
HD: 1080i60, 1080i50, 1080p30, 1080p25, 1080p24, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p50
4K UHD downscale for HD monitoring: Yes - loop-out & playback
4K-UHD 3840x2160 8/10-bit 4:2:2 to:
Apple ProRes: HQ, 422, LT
DNxHR: HQX, HQ, SQ, LB
Lossless Cinema DNG (data rate camera dependent)
1920x1080 8/10-bit 4:2:2 to:
Apple ProRes: HQ, 422, LT
DNxHD: 220x, 220, 145, 36
24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
2 or 8ch 24-bit, camera dependent
12ch 48kHz 24-bit
2ch balanced XLR analog in/out
Dynamic range >90dB
Max signal level +24dBu
Max analog gain +40dB
48V Phantom Power for Mic
Auto HDMI Trigger
Supported Protocols - Canon, Sony, Atomos Open
Standard
SDI trigger camera selectable
LANC control - Slave
4K / HD (50/60/120p)
CFast 2.0, SSD 2.5", HDD (7,200 up to 1080p60)
HD
CFast 1.0, SSD 2.5", HDD (5,400 up to 1080p30)
Master Caddy II (included)
2.5" SATA to USB 2.0/3.0
Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
FCPX XML native, FCP7 supported with conversion (Adobe compatible)
Master caddy case: 75 x 105 x 12mm / 2.95 x 4.13 x 0.47"
840014151783

Required

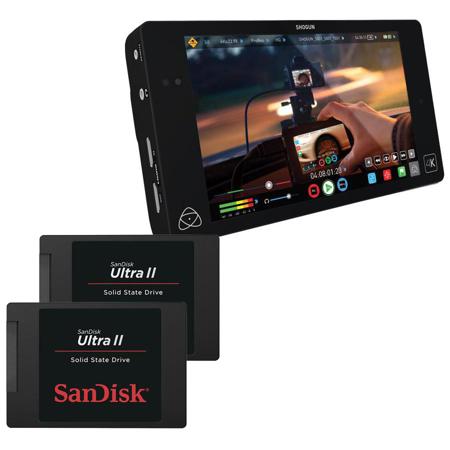

Record 4K, HH & Raw Direct To Hollywood Editing Standards
Record direct from the camera sensor to your choice of Apple ProRes, DNxHD/DNxHR or RAW in 10-bit 422 quality onto affordable media options. Based on the camera's output the Shogun can accept and record up to 4K 30p and HD 120p over HDMI or 12/6/3/1.5G SDI.
Review Instantly on Set
Full playback controls allow collaboration on set to review content the moment it's captured, using the full suite of monitor tools on screen or out to a larger HDMI or SDI monitor. There is even 4K to HD down scaling to connect with existing HD infrastructure.
The World's Most Advanced Audio and Video Monitor
A stunning 7.1" 1920 x 1200 320ppi IPS screen makes Shogun perfect as a director's monitor. Shoot more accurate colors with class leading 3D LUTs, 2:1/1:1 zoom for critical focus, waveform, focal assist and an optional Spyder calibration unit. It's the perfect tool for perfect creative shot setup.
Metadata Tagging at Point of Acquisition
Save time in post by tagging your captured content the moment you review on set. Mark Favorite/Reject, create a custom playlist, upload custom meta data tags and even cut in/out points. Save them out as an XML on the Shogun and drop straight onto the timeline of your favorite NLE.
2015 Future Updates
Anamorphic de-squeeze (including Panasonic 8:3)
Pre-roll record (8s HD, 2s 4K)
Custom time lapse recording (multi stage, duration & interval)
Custom playlist generation
LUTs applied on output
Cinema 4K DCI support (4096 x 2160p)
RAW recording to ProRes, DNxHR, Cinema DNG - Sony FS series, Canon C500, Arri Alexa, AJA Cion
Uncompressed v210 recording
Custom meta data tagging
GenLock
