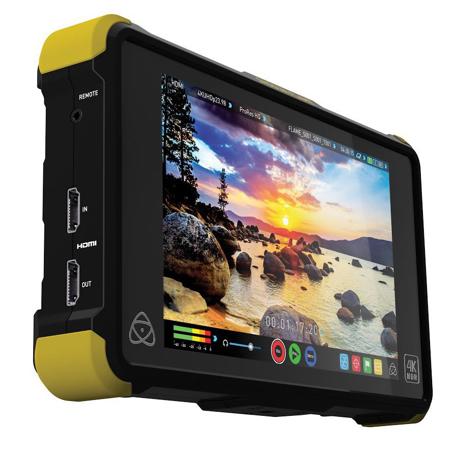

Atomos Shogun Flame 7" 4K Recording Monitor with Accessories Kit - 1920x1200

SKU: ATOMSHGFL1

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2019-11-27T07:26:58

Rated 5 out of 5

Great Product

Works great with my A7S

Nicholas G.

2019-06-06T14:05:37

Rated 5 out of 5

Awesome!

Perfect monitor / recorder.

Moriearty M.

2019-01-29T08:16:56

Rated 5 out of 5

Shogun and Adorama is life

This is such an amazing product, and adorama deleivered the product with ease. The shogun really helped enhance my production and with the screen being so big but small enough to be portable was a huge help with setting up shots.

William G.

2019-01-22T07:39:22

Rated 5 out of 5

excelente

imagen excelentes y video super facil de editar

ISAAC R.

2018-12-20T13:21:28

Rated 5 out of 5

Fantastic Monitor / External Recorder, Great Addition to Gear

Have used it a handful of times already since purchasing it, and I'm really loving it so far. Great quality, perfect size, and the external recording capabilities are a god-send. Adorama was quick to ship as well.

Dennis U.

2018-12-17T13:48:26

Rated 5 out of 5

Best recorder available

Exactly as described. Great product

Ian H.

2018-12-16T16:11:09

Rated 5 out of 5

Lighting quick delivery

I'd just ordered it and the doorbell rang!! Amazing delivery, product at almost half price (special offer) of what it was in other stores. Adore Adorama :)

Nazima K.

2018-09-28T14:44:21

Rated 4 out of 5

4.5 stars out of 5. Perfect in almost every way. I'd definitely recommend it

It is a very nice monitor. Perfect for almost any use except one. The only issue I have with this monitor is that it is slightly heavier than the competition. This makes it so that when it is mounted directly on top of the camera (for run and gun) it makes the camera very top heavy (especially with more than one battery) otherwise the monitor is beautiful and I love it. Another thing I'd like to add is that online reviewers say that the touch screen is sometimes not responsive. I'm running the latest version of the firmware and I do have to say that this screen has been working just as well as my iPhone. Perfect!

DANILO B.

2018-07-23T12:17:59

Rated 5 out of 5

My shogun flame

Compact, usefull, reliable and practical. Owner of a field video recorder without monitor, this one saves time and space. One of the few applications that I use it for is a cooking program; with airs on Mega TV at 1pm on week days.

MARIO R.

2018-07-20T13:43:18

Rated 5 out of 5

Plays nicely with my a7Sii

I'm just starting to explore Slog and this device ready let me see what I'm doing when I dial in the Picture Profile settings in the field. It helps me produce very nice HDR video even when shooting in the midafternoon sun. The sunshade works pretty well. It is very light tight however, I still get a reflection of my eyes and the viewing slot. Maybe adding a little foam around it might help that. A little graffers tape will help keep it on the monitor. Very happy with the purchase

David P.

2018-03-26T08:32:56

Rated 2 out of 5

not right for my camera

there nothing wrong with it. is just that it doesnt perform what i wanted

NSIKAN U.

2018-01-18T18:59:59

Rated 3 out of 5

Working good, but service is bad

Sent wrong item, but item is working good.

Young K.

2017-11-28T12:00:45

Rated 5 out of 5

E-Z?

I'm using a Nikon D750, it is not as ez to hook the two up as i thought the steps to get a clean signal out to the HDMI port not shutting off every ten minutes, is a bear Lots of little steps I'm learning as i go the quality is outstanding. you need a way to get the file out to a computer this will require a extra do-da the file works fine with Final Cut Pro x

ELVINO M.

2017-10-17T13:47:55

Rated 4 out of 5

First copy failed immediately. Second amazing.

I love this thing. It's a great monitor, and having an edit friendly ProRes 422 ready to go at the end of the shoot saves a lot of time in post. First copy failed almost immediately. Second one seems great. Wish it came with a hood.

Brett C.

2017-06-14T13:53:47

Rated 5 out of 5

Excellent Recorder for Sony FS5 (w/RAW upgrade)

I own an FS5 and recently installed the RAW upgrade. I use the Shogun Flame as my RAW recorder now (with a 1TB Samsung SSD). The display is gorgeous and the interface is easy to use and follow. The extra accessories (sun/glare guard, drive caddies, cables, batteries, etc.) are very helpful and Adorama offered the bundle for a fantastic price. Highly satisfied with this. I also like that Atomos doesn't require users to pay to upgrade. Very consumer-friendly company.

Brandon B.

2017-05-11T09:00:13

Rated 5 out of 5

Shogun Flame Part Deux

Just got my second Shogun, these are great monitors, and they record too. Totally satisfied the the product.

PHIL D.

2017-05-05T12:13:53

Rated 5 out of 5

Shogun Flame!!!

I would recommend the Shogun Flame to anyone in video production on any level. I purchase the Atomos Ninja 2 about a year ago great product, but it does not compare to the Shogun Flame I recently purchase.The Atomos Shogun Flame is a must have for video production. I use it with my Canon C100 camera.

Clarence B.

2017-04-13T11:34:43

Rated 5 out of 5

Great product!

Fantastic product that significantly improved the results of our shoot.

Kevin H.

2017-03-28T09:13:52

Rated 5 out of 5

The Most color accurate Hi-brite monitor I can think of

I purchased this to act as a high bright monitor on my gimbal, I was tired of squinting to see tiny screens and double check focus. I played with the SmallHD702 and was not impressed. Picked up the Shogun Flame on a whim and I'm absolutely in love. The ability to add a LUT or REC709 overlay with one finger is great when running between camera modes. Pixel density and the plethora of focus/exposure tools make this wonderful as both an AC monitor or as an on camera/small client monitor. It's as accurate as my viewfinder for color reproduction. Highly Recommend this toy and you Cannot beat the price

Thomas T.

2017-02-02T08:08:03

Rated 5 out of 5

The Shogun Flame is incredible

I love the Flame. I've never used an external video recorder before, nor have I ever used any HDR features. This is really easy to learn. I was shooting within 30 minutes. It records incredible footage and comes really well equipped with a pelican-like hard case for transport. My only qualm is with the included shoe mount. It's not that strong and has given me some scares as it dipped while on a camera.

Josh C.

2016-12-29T05:22:13

Rated 3 out of 5

Good product but the $ 300 rebate is a hoax

The ($) rebate is a hoax. Atomos did not accept proof of purchase of Adorama

Wenceslao C.

2016-04-15T09:35:25

Rated 4 out of 5

Amazing interface

I have to preface this that I am coming form using the Convergent Design Odyssey 7Q. Compared to that, the interface is a dream! It is so easy and logical. The image quality is great and the on screen tools are such a help. It also comes with everything you need in the case for a lower price! The only negative I have is that the fan noise is pretty loud. The 7q had no fan at all so this was surprising to hear. I would guess 95% of my shoots it will not make a difference, but in a close intimate shoot I am pretty sure you will hear it. One nit pick I also have is that the 7Q had the ability to add your own custom on screen guides. So I built a rule of thirds guide. This monitor doesn't have that and I wish it did because I use it all the time for shot composition.

STEPHEN H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Atomos Shogun Flame Specifications

  • Display Size

    7.1"

  • Resolution

    1920 x 1200

  • PPI

    325

  • AtomHDR

    Yes

  • Bit depth

    10-bit (8+2 FRC)

  • Brightness

    1500nit (+/- 10%)

  • Aspect ratio

    16:9 native

  • Color gamut

    REC709 HDTV

  • Look up table (LUT) support

    3D LUT (.cube file format)

  • Technology

    SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

  • Video input/loop out

    HDMI: 1x HDMI (1.4b)
    SDI: 1x 4K-SDI 6G or HD-SDI 3G/1.5G (SMPTE)
    Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

  • Video output (play out)

    HDMI: 1x HDMI (1.4b)
    SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE)
    Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

  • Supported loop out formats

    HDMI to HDMI: 720p 50/60, 1080i 50/60,
    1080p 24/25/30/50/60/120, 2160p 24/25/30

    SDI to SDI: 720p 50/60, 1080i 50/60
    1080pSF 24/25/30
    1080p 24/25/30/50/60/120, 2160p 24/25/30

  • Video signal conversion

    HDMI to SDI: 720p 50/60, 1080i 50/60
    1080p 24/25/30/50/60/120, 2160p 24/25/30

    SDI to HDMI: 720p 50/60, 1080i 50/60,
    1080p 24/25/30/50/60/120, 2160p 24/25/30

  • Supported formats (Record & Playback)

    4K: 2160p 24/25/30

    HD - high frame rate: 1080p120, 1080p60/50

    HD: 1080i60, 1080i50, 1080p30, 1080p25, 1080p24, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p50

    4K UHD downscale for HD monitoring: Yes - loop-out & playback (not available in RAW)

    Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3

  • Realtime hardware encoding

    4K - DCI RAW 4096x2160 to Supported cameras; Sony FS700, FS7 Canon C300MKII, C500:
    Apple ProRes
    HQ, 422, LT
    DNxHR
    HQX, HQ, SQ, LB

    4K-UHD 3840x2160 8/10-bit 4:2:2 to:
    Apple ProRes
    HQ, 422, LT
    DNxHR
    HQX, HQ, SQ, LB

    1920x1080 8/10-bit 4:2:2 to:
    Apple ProRes
    HQ, 422, LT
    DNxHD
    220x, 220, 145, 36

  • Onboard processing

    Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)

  • Audio in/out (48kHz PCM audio)

    HDMI: 2 or 8ch 24-bit, camera dependent
    SDI: 12ch 48kHz 24-bit
    Audio: 2ch balanced XLR analog in/out
    Dynamic range >90dB
    Max signal level +24dBu
    Max analog gain +52dB
    48V Phantom Power for Mic

  • Remote start/stop

    HDMI: Auto HDMI Trigger
    Supported Protocols - Canon, Sony, Atomos Open Standard
    SDI: SDI trigger camera selectable
    Other: LANC control - Slave

  • Playback

    Playlist: Yes
    Genlock / LTC: Yes / Yes

  • Recording

    Pre-roll record: Yes (HD 8s, 4K 2s)
    Custom timelapse: Yes
    Meta data tagging: Yes (10 tags available)

  • Supported media (Approved List Only)

    4K / HD (50/60/120p)
    SSD 2.5", HDD (7,200 up to 1080p60)

    HD
    SSD 2.5", HDD (5,400 up to 1080p30)

  • Master caddy case

    Master Caddy II (included)
    75mm x 105mm x 12mm

  • Master caddy dock

    2.5" SATA to USB 2.0/3.0

  • Supported applications

    Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+
    EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015

  • XML support

    FCPX XML native, FCP7 supported with conversion (Adobe compatible)

  • Construction

    High quality lightweight ABS Polycarbonate for durability & portability
    Built-in armor protection

  • Power

    Operating power: 10 - 24W
    Compatible batteries: NP series and supporting accessories
    Input voltage (battery): 6.2V to 16.8V
    Battery time (based on 7.4V): 5200mAh - up to 1.5hrs (monitor & record 4K)
    7800mAh - up to 2.2hrs (monitor & record 4K)
    DC In: 1 x DC in (6.2 - 16.8V)
    Continuous power Patent pending: Primary-secondary battery system
    Change batteries without losing power
    Loop batteries continuously

  • Dimensions (WxHxD)

    8.4 x 5 x 1.8" (214 x 127 x 45mm)

  • Weight

    Without batteries & media: 22.9 oz (650g)
    With batteries & media: 38.6 oz (1094g)

  • UPC Code

    814164020541

13 Accessories for Atomos Shogun Flame 7" 4K Recording Monitor with Accessories Kit - 1920x1200

  • All Accessories (13)
  • Cables & Adapters (4)Required Item
  • Headphones (2)
  • Batteries & Power Supply (3)
  • Batteries & Chargers (1)
  • Brackets & Mounts (3)

About Atomos Shogun Flame

FEATURED REVIEWS

Excellent Recorder for Sony FS5 (w/RAW upgrade)

By Brandon B.

I own an FS5 and recently installed the RAW upgrade. I use the Shogun Flame as my RAW recorder now (with a 1TB Samsung SSD). The display is gorgeous and the interface is easy to use and follow. The extra accessories (sun/glare guard, drive caddies, cables, batteries, etc.) are very helpful and Adorama offered the bundle for a fantastic price. Highly satisfied with this. I also like that Atomos doesn't require users to pay to upgrade. Very consumer-friendly company.

Great Product

By Nicholas G.

Works great with my A7S

Intense Detail. Scorching Brightness.
Shoot in log from the camera and for the first time, thanks to the AtomHDR engine, reproduce the vibrant colors & brightness of HDR in post production on a field monitor. The Shogun Flame is a 7" 10-bit 1500nit Field Monitor with the AtomHDR engine, connections for HDMI / SDI / XLR and recording for both Video and Raw (Sony & Canon) to 4K/HD 10-bit ProRes/DNxHR.

Get Ahead of the Log Curve
Cameras with Log output (S-Log2, S-Log3, C-Log, V-Log etc) already have the 10+ stops of dynamic range needed for High Dynamic Range (HDR). Be at the forefront of the HDR revolution sweeping the industry by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.

Scenes Ignite with 1500Nits of Light
Not all scenes call for HDR Log recording. In situations that don't call for 10 stops of dynamic range, use the intensity of the 1500nit panel to monitor traditional Rec709 video at high brightness for outdoor monitoring.

Simply pick the right mode, HDR or High Bright, and get busy setting up your shot on the premium 7" display boasting 10-bit processing, 1920x1200 resolution, 325ppi pixel density, optional calibration to overcome natural LCD color drift and an arsenal of precision video setup tools for perfect shots every time.

Unlock the Raw from Sony & Canon
Output the 4K/HD Raw from select cameras (Sony FS7/FS700 & Canon C300MKII/C500) over SDI and record direct to 10-bit 4:2:2 ProRes or DNxHR. Capturing Raw using the Shogun Flame is a free feature with no additional licensing costs and lets you immediately take advantage of this affordable media platform bypassing the need for proprietary cards and media.

Widest Camera Compatibility
The HDMI connection is compatible up to 4Kp30 and the SDI connection has compatibility up to 12G ensuring you are future proofed as the SMPTE standard updates. The built-in bi-directional conversion allows HDMI cameras to be integrated into a SDI workflow or connect SDI cameras with HDMI flat panels.

Record Professional 4K & HD
Recording 4K and high frame rate HD within the camera might seem enough but unless you record with the right codec you're restricting flexibility in post and even run the risk of having your footage technically rejected. Along with the high pixel density of 4K, the Shogun Flame records higher resolution 10-bit color information, more precise yet efficient 4:2:2 color encoding and to visually lossless, edit-ready codecs like Apple ProRes or AVID DNxHR. Now you're recording professionally, capturing full individual frames just like film and opening up more creativity in post and grading.

Simple OS, Sophisticated Shots
The Flame Series is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Safe Area, luma/RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LUTs or upload .cube files) and options for de-squeezing anamorphic content.

Continuous Power is Back... With Super Fast Charging.
Shogun Flame's patented continuous power system pioneered on Atomos' HD products are back on the 4K range. The hot swappable dual battery system that automatically swaps to the second battery when power is low, coupled with the blazingly fast battery charger and dual 4-cell batteries (both included with the product) means that continuous power in the field is all but assured.

Advanced DSLR Audio Monitoring
Record audio as well as video externally on the Shogun Flame. Monitor up to 8ch of HDMI audio or 2ch analog line in on the dedicated audio meters, all locked frame accurate with adjustment for frame delay, gain adjustment and Mic level adjustment when using external microphones (3.5mm unbalanced input).

Advanced Recording Capability
Outside of 10-bit 4:2:2 ProRes/DNx, the Shogun Flame adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI from select Canon, Sony, Panasonic, Nikon cameras. Convert interlace video from your camera to progressive on the fly with built-in 3:2 and 2:2 pulldown and gain advanced functionality like Pre-roll (continuous cache recording to never miss the action) and Time lapse to maximize your creativity.

Battle-Ready! For the Field
Shogun Flame's built-in armor enhances protection & airflow whilst the raft of accessories (2 x NP series 4-cell batteries, fast battery charger, USB3 docking station, XLR breakout cable, Lanc cable, DC to D-Tap cable, 5 x Master Caddy cases, DC adapter & HDR sun hood) and the premium HPRC flight case ensures you're ready to hit the field immediately.

Fast charger - 3 times the charging time of conventional chargers
Battle-ready build - Built-in Armor, Continuous power and Lightweight design
Batteries included - NP style 4-cell batteries (1.5 hours monitoring & recording in 4K)
AtomHDR - 10 stops of dynamic range, 1500nit 7" Full HD calibrated monitor
Snap-fast sun hood - Strong blockout and magnetic snap-fast design for easy screen access

Atomos Shogun Flame Features

  • AtomHDR = More detail: AtomHDR delivers 10 stops of dynamic range (brightness range) to match 10-bit camera LOG footage, revealing detail in highlights & shadows usually clipped on traditional (REC709) monitors. Supported LOG cameras include: Sony, Canon, Panasonic, ARRI, RED & JVC.
  • High Bright 7" Calibrated Monitor: The world's most advanced 7" field monitor, with 1500nits brightness for outdoor shooting, native Full HD resolution & calibration to ensure natural LCD color drift can be corrected over time - shoot what you see guaranteed.
  • 10-bit monitoring: Upgraded 10 bit processing to resolve 1.07 billion colors compared to the 16.7 million colors of traditional 8 bit panels to all but eliminate color banding.
  • 10-bit post production: Monitor post production content in 10-bit HDR for any NLE or color correction suite.
  • HDMI/SDI: With both HDMI and SDI in/out you have the maximum flexibility in choice of camera including Raw SDI cameras like the Sony FS700/FS7 and Canon C500/C300MKII. With bi-directional conversion allowing you to add any camera to your HDMI or SDI workflow.
  • 4K & Raw Recording: Record direct from the sensor at 4K UHD (up to 30p) or HD (50/60/120p) at higher resolution 10-bit color with precise yet efficient 4:2:2 color encoding. Even record Raw to ProRes/DNx for select Sony & Canon cameras.
  • Improved Video Quality: 10-bit color resolution, 4:2:2 color accuracy and visually lossless ProRes/DNxHR compression.
  • Continuous power: Atomos' patent pending hot swappable dual battery system for continuous power is backed up with the included power accessories including 2 x 4-cell batteries, D-Tap to DC cable and a blazingly fast battery charger.

Key Features

  • High Bright 7" Calibrated Monitor
  • 10-bit post production
  • Improved Video Quality
  • AtomHDR = More detail
  • 4K & Raw Recording
  • 10-bit monitoring

What's in the box:

  • Atomos Shogun Flame Unit
  • Custom Yellow HPRC Hard Flight Case
  • Control Cable (2.5mm Female to 2x 2.5mm Male)
  • XLR Breakout Cable
  • 2x NP-F750 4-cell Batteries
  • Fast Battery Charger
  • USB3 Docking Station
  • Coiled D-Tap to DC Power Cable
  • 5x Master Caddy Cases
  • 2x 12V 3A AC-DC Power Adapter
  • Snap-fast Sun Hood
  • Atomos 1 Year Limited Warranty (3 Year Warranty with Registration)
