Atlona Technologies

Atlona Technologies HDMI Extender over Single Category Cable, 6.75Gbps Bandwidth

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$279.99 List Price

Our Price

$244.99 $10 per week
Free Shipping
Add to Wishlist

About this item

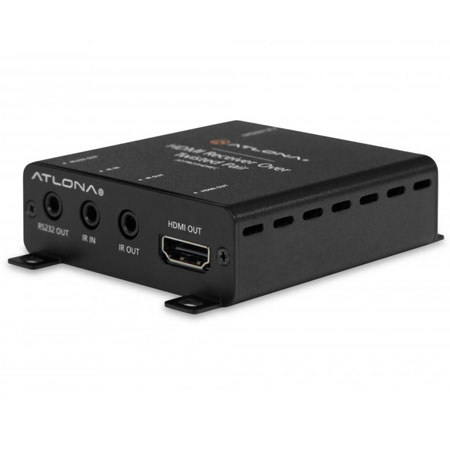

The Atlona HDMI Extender over Single Category Cable extends IR, RS-232, audio and video content between sources and displays at a distance of up to 200' (61m) with the PRO3HD44M matrix switcher (sold separately). The extender offers pass-through support at resolutions up to 1080p or 1920 x 1200 and also for 3D, 2-channel and multi-channel audio, bi-directional RS-232 and IR signals.

What's Included With This Item

  • Atlona HDMI Extender over Single Category Cable
  • 3.5mm RS-232 to 9pin RS-232 Adaptor
  • IR 3.5mm Receiver
  • IR 3.5mm Emitter
  • User Manual
  • Atlona 10 Years Limited Warranty

Key Features

  • Extend IR, RS-232, audio and visual content up to 230ft over a single Category cable
  • Leave behind the power cable on your receiver. With the latest feature of Power over Category cable (PoCc) the HDREC receives power from the PRO3HD44M
  • Compatible with all 3rd party controllers and IR remote controls, bidirectional control through IR ports and bi-directional signals through RS-232 for receiving commands and sending feedback to a 3rd party controller
  • Supports pass through of all 3D formats
  • Powered from the transmitter
  • Small form factor
  • DTS-HD Master Audio and Dolby TrueHD audio pass-through

Technical Specs

Bandwidth frequency 6.75 Gbps
Resolution outputs Video: up to 1080p
Vesa: up to 1920x1200
Input Ports 1 x CAT5e/6/7
1 x IR 3.5mm
Output Ports 1 x HDMI (Female type)
1 x IR 3.5mm
1 x RS-232 (3.5mm)
Distance 230' at 1080p over CAT6a/7
197' at 1080p over CAT5e/6
Wall Mountable Yes
HDCP Compliant Yes
Operating Temperature 32deg.F to 104deg.F / 0deg.C to 40deg.C
Storage Temperature -4deg.F to 140deg.F / -20deg.C to 60deg.C
Power Consumption 6W
Certifications CE, FCC, RoHS, cULus for power supplies
Dimensions (H x W x D) 0.88 x 2.75 x 3.56" / 2.22 x 6.98 x 9.04 cm
Weight 0.25 lbs / 0.11 kg
