Electro-Voice 309A Suspention Shock Mount for the RE-20 & RE-27N/D Microphones - Black

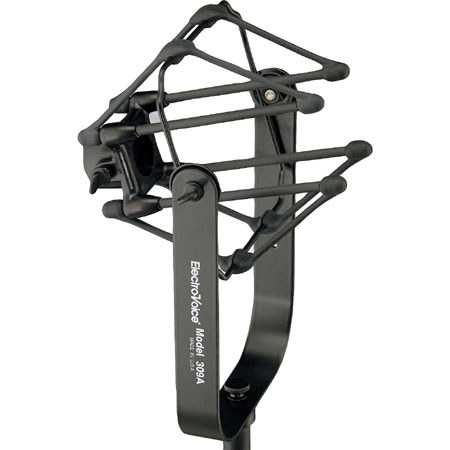

The Electro-Voice 309A suspension shock mount was designed specifically for use with the RE20 and RE27N/D dynamic microphones. It provides near-perfect shock isolation for the already internally shock mounted RE20 or RE27N/D. For most applications, the Model 309A may be attached directly to the recording boom or to a floor stand. A stand adapter with 5/8" -27 thread is provided

The 309A mount design allows quick installation of the RE20 or RE27N/D microphone without tools. A double safety factor is provided to ensure that the microphone will remain attached to the shock mount under any conditions. First a bayonet locking action assures that the microphone will not fall out of the shock mount under its own weight. Additionally, a set screw (wing type) can be tightened to lock the microphone in place after it has been properly positioned.

Four molded neoprene shock cords suspend and support the microphone within an aluminum and steel frame-work to effectively isolate it from mechanical shock and vibration.
