Item Includes
Maximum Audio Tools software bundle
|
Description
Sound quality, performance, and driver support are a few of the reasons that the Delta 66 has established worldwide recognition as a top choice in PCI-based digital audio solutions. With its superb engineering, the fidelity of the Delta 66 surpasses cards that cost many times more, giving your recordings the advantage of truly superior audio quality. The Delta 66 offers the professional performance required by today's most popular software programs, and provides you with features like 96 kHz recording, zero latency monitoring, digital mixing, and controllable SCMS. The Delta family of soundcards also offers more drivers and greater reliability than any other, which means that your Delta card will work (and work well) with whatever software you choose to use. Delta audio cards deliver more of what you need to make music on your terms.
If you need more professional connectivity, simply add the critically acclaimed Omni I/O (given a 10/10 "Ultimate Buy" rating in Computer Music magazine.) With the Omni I/O as its front end, the Delta 66 gains 2 pristine mic preamps (given Pro Audio Review's highest rating), an additional 8 inputs to its mixing section, 2 headphones sends, an FX send and return, dedicated monitor outs and record outs, auxiliary input record bussing, and more.
Studiophile BX5 Need speakers? The Studiophile BX5 speakers are designed to work perfectly with M-Audio gear, and because they're self powered, all you need is a cable to use them. Click for more info...
Drivers are what allows your card to communicate with audio applications. M-Audio offers drivers compliant with almost every possible application on the market. For MacOS, there are both Sound Manager and several different versions of ASIO. For Windows, there are ASIO, ASIO2, GSIF, EASI, as well as multi-client WDM (Win 2K) and MME drivers. Multiclient drivers allow you to use multiple applications simultaneously, allowing you to run sequencers, soft-synths, and other programs at the same time. We are also committed to supporting both MacOS X and Windows XP. |
Features
 |
6x6 24-bit/96kHz full-duplex recording interface. |
|

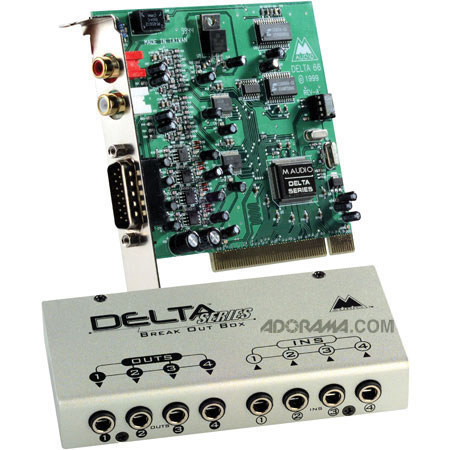

PCI Host card with external audio break-out box. |
|
PCI card provides S/PDIF inputs and outputs on RCA jacks. |
|
4x4 analog break-out box accepts balanced or unbalanced connections on |
|
1/4" TRS jacks. |
|
Analog I/O configurable for +4dB and -10dB signal levels. |
|
Measured D/A specs: 103dB (A-weighted) dynamic range, 0.0015% THD @ 0dBFS. |
|
Measured A/D specs: 99dB (A-weighted) dynamic range, 0.0023% THD @ 0dBFS. |
|
All data paths support up to 24-bit/96kHz performance |
|
Powerful digital mixing, routing and monitoring capabilities. |
|
Drivers for Mac, Windows, NT, Linux, and more. |
Specifications
| System Requirements | PC: Windows 95, 98,NT, 2000, ME, or XP, Pentium III 500Mhz - (96kHz operation), Pentium II 400 - (48kHz operation), 128 MB of PC100 RAM - (96kHz operation), 64 MB of SDRAM - (48kHz operation), UDMA EIDE or ATA 33/66 HDD
Mac: G4 or G3, MacOS 8.6 or higher, 128 MB RAM - (96kHz operation), 64 MB RAM - (48kHz operation), OMS 2.3.8 for MIDI operation |
| | |
|
