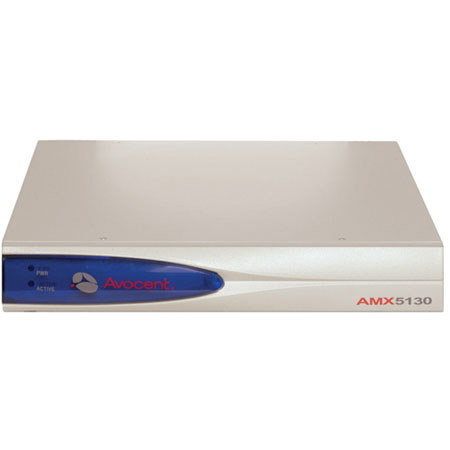

About the Avocent AMX5130

The Avocent AMX5130 desktop user station provides access from your desk to an AMX KVM matrix switch system and one local computer. The AMX5130 user station connects to your multi-platform PS/2 or USB KVM peripherals and sends the KVM signals over an industry-standard UTP cable to an Avocent AMX matrix switch. In addition, this user station brings audio and serial support to the AMX user supporting stereo speakers and mono microphone. Two UTP connections support AMIQs or a combination of AMX switch system and an AMIQ, allowing for multi-computer configurations along with local computer support.

Avocent AMX5130 Features

  • Provides switching of stereo speakers and mono microphone
  • Provides switching of serial up to 38.4k
  • Supports connections to all AMX switches and IQs
  • Provides USB keyboard and mouse at any user
  • Ships with the AMIQDM server interface module for convenient connections from PS2-based servers to the AMX switch including audio and serial
  • Supports multi-platform peripherals: PS/2 and USB (including PC, Mac and Sun USB keyboards)
  • Allows you to access and control one local computer
  • Provides high-quality video
  • Automatically compensates for varying cable types and lengths: CAT5, CAT5e and CAT6 including GigaFlex
  • Adjusts for skew between RGB signals each time a switch is made to a server
  • Offers video resolutions up to 1280 x 1024 at 1,000 feet
  • Works with patented OSCAR on-screen graphical interface to assist you with configuration and server selection

Avocent AMX5130 Specifications

Form Factor 1U Desktop
Number of Computers 1
Graphics Resolution 1600 x 1200 at 75 Hz
1280 x 1024 at 75 Hz
Number of Users 1
User/Console Ports 1 x 6-pin Mini-DIN (PS/2) Keyboard
1 x 6-pin Mini-DIN (PS/2) Mouse
1 x Type A Keyboard
1 x Type A Mouse
1 x 15-pin HD-15 Monitor
2 x Mini-phone Audio
Computer Ports 1 x RJ-45 Keyboard/Mouse/Video
Other Ports 1 x RJ-45 KVM
1 x 9-pin DB-9 Male Serial
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz
Input 1 Amp MAX
Operating Temperature 32deg. to 104deg. F (0deg. to 40deg. C)
Storage Temperature -4deg. to 140deg. F (-20deg. to 60deg. C)
Computers Supported PS/2, Sun and USB with audio and serial
Monitor Supported VGA, SVGA, XGA, SXGA, up to 1600 x 1200 at 75Hz resolution at 100' or 1280x1024 at 75Hz at 1000'
Peripherals Supported PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 6, Mac USB
3.5mm male stereo audio out, 3.5mm male mono audio in, serial 9pin D male full hardware flow control
Standards UL, cUL, FCC, VCCi, CE, C-Tick, Nemko, GOST, IRAM
Dimensions (H x W x D) 1.74 in x 10.9 in x 11.5 in / 4.4 cm x 27.9 cm x 29.2 cm
Weight 5 lbs. (2.0 kg)
